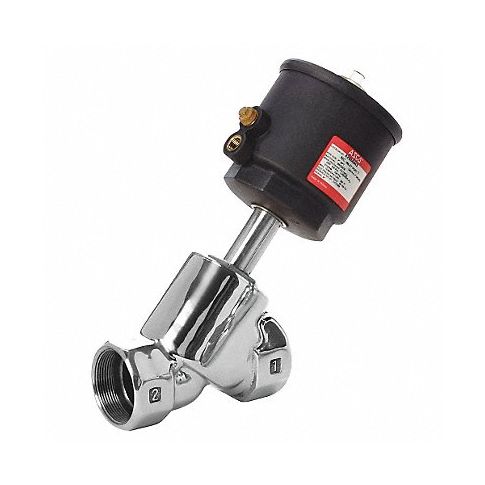

Angle Body Valve 1-1/2 CV 52.0 MPN:8290A064
Angle Body Valve 1-1/2 CV 52.0
Angle body valves such as 1-1/2 CV 52.0 are commonly used in commercial, residential, and industrial plumbing applications to control the flow of liquids like water, gas or air. They offer superior performance in various settings where space is limited because of their compact design that allows for tight corners without disrupting pipe connections. This type of valve can also be applied in HVAC systems or general flow management solutions in different industries where precise fluid control is required.
2-Way Normally Closed Angle Body Piston Valves • Pilot pressure range: 60 to 150 psi Max. fluid temp.: 366°FAuxiliary-piloted piston valves feature cold-rolled stainless steel shaft, spring-loaded stem seal, and DuPont? Viton® shaft wiper. Require 120V, 60 Hz solenoid valve. Designed to handle water, light slurries, and steam.
Technical Specifications
- Item Angle Body Piston Valve
- Solenoid Valve Product Group Angle Body Piston Valve
- Valve Ways and Positions 2-Way/2-Position
- Valve Configuration Normally Closed
- Media - Valves Air, Inert Gases, Light Slurries, Oil, Water
- Pipe Size - Valves 1 1/2 in
- Min. Operating Pressure Differential 0 psi
- Max. Operating Pressure Differential Water 120 psi
- Max. Operating Pressure Differential Steam 120 psi
- Environmental Rating - Valves Indoor, Outdoor
- Coefficient of Volume 52.0
- Body Material - Valves 316L Stainless Steel
- Seal Material - Valves PTFE
- Orifice Dia. 1 1/2 in
- Ambient Temp. Range 15 Degrees to 140 Degrees F
- Max. Fluid Temp. 366 Degrees F
- Min. Pilot Pressure 60 psi
- Max. Pilot Pressure 150 psi
- Stem Material 431 Stainless Steel
- Disc Material 304L Stainless Steel
- Operator Size 90 mm
- Center Line Pipe Center Size 9 1/8 in
- Viscosity 2,700 SUS
- Overall Length 4 3/4 in
- Overall Width 9 3/5 in
- Overall Height 10 5/16 in
- Actuator Pilot Solenoid Valve, Not Included
Manufacturer Details
- Manufacturer: Asco
- Condensed Mfg Number: 8290A064
- MPN: 8290A064
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8481809050
- GDS Category Name: Angle Body Piston Valves
- GDS Family Name: Solenoid Valves and Coils
- GDS Segment Name: Plumbing
- UNSPSC: 40141630
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Valves
- UNSPSC Commodity ID: 30
- UNSPSC Commodity Name: Piston check valves
- UNSPSC Family ID: 14
- UNSPSC Family Name: Fluid and gas distribution
- UNSPSC Segment ID: 40
- UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on April 4, 2024 6:44am UTC
Category: Solenoid Valves and Coils
