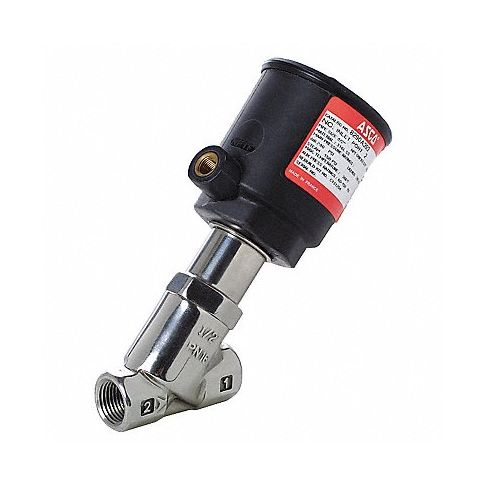

Angle Body Valve 1/2 CV 5.7 MPN:8290A393
Angle Body Valve 1/2 CV 5.7
The angle body valve offers precise flow control with a Class V and Cv rating of 5.7, making it perfect for industrial fluid handling applications requiring on-off functionality. Its angled design simplifies installation while delivering enhanced performance, ensuring reliable operation in demanding environments where accurate fluid control is crucial. Manufactured from durable materials that resist corrosion and wear, this robustly constructed valve is suitable for use across various industries such as water treatment and chemical processing. Equipped with a coil for easy on-off operation, the angle body valve provides longevity and accuracy in demanding applications where solenoid valves and coils are widely utilized.
2-Way Normally Closed Angle Body Piston Valves • Pilot pressure range: 60 to 150 psi Max. fluid temp.: 366°FAuxiliary-piloted piston valves feature cold-rolled stainless steel shaft, spring-loaded stem seal, and DuPont? Viton® shaft wiper. Require 120V, 60 Hz solenoid valve. Designed to handle water, light slurries, and steam.
Technical Specifications
- Item Angle Body Piston Valve
- Solenoid Valve Product Group Angle Body Piston Valve
- Valve Ways and Positions 2-Way/2-Position
- Valve Configuration Normally Closed
- Media - Valves Air, Inert Gases, Light Slurries, Oil, Water
- Pipe Size - Valves 1/2 in
- Min. Operating Pressure Differential 0 psi
- Max. Operating Pressure Differential Water 240 psi
- Max. Operating Pressure Differential Steam 150 psi
- Environmental Rating - Valves Indoor, Outdoor
- Coefficient of Volume 5.7
- Body Material - Valves 316L Stainless Steel
- Seal Material - Valves PTFE
- Orifice Dia. 1/2 in
- Ambient Temp. Range 15 Degrees to 140 Degrees F
- Max. Fluid Temp. 366 Degrees F
- Min. Pilot Pressure 60 psi
- Max. Pilot Pressure 150 psi
- Stem Material 431 Stainless Steel
- Disc Material 304L Stainless Steel
- Operator Size 50 mm
- Center Line Pipe Center Size 5 1/2 in
- Viscosity 2,700 SUS
- Overall Length 2 9/16 in
- Overall Width 5 3/5 in
- Overall Height 6 1/16 in
- Actuator Pilot Solenoid Valve, Not Included
Manufacturer Details
- Manufacturer: Asco
- Condensed Mfg Number: 8290A393
- MPN: 8290A393
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8481809050
- GDS Category Name: Angle Body Piston Valves
- GDS Family Name: Solenoid Valves and Coils
- GDS Segment Name: Plumbing
- UNSPSC: 40141630
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Valves
- UNSPSC Commodity ID: 30
- UNSPSC Commodity Name: Piston check valves
- UNSPSC Family ID: 14
- UNSPSC Family Name: Fluid and gas distribution
- UNSPSC Segment ID: 40
- UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on April 4, 2024 6:44am UTC
Category: Solenoid Valves and Coils
