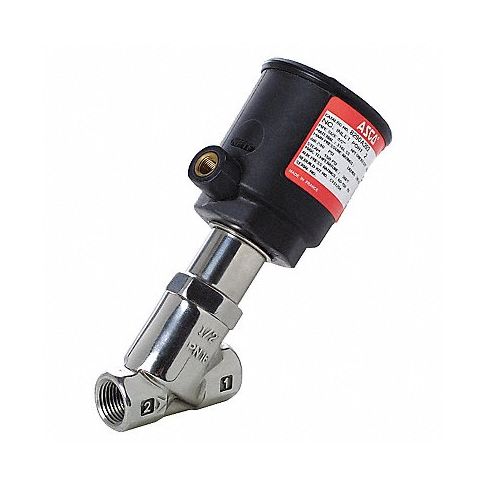

Angle Body Valve 1 CV 15.0 MPN:8290A395
Introducing the Asco Angle Body Valve - a powerful and versatile solution for controlling fluids in your industrial or commercial system. With a compact design that provides 2-way/2-position control, this valve is ideal for applications that require precision flow management, such as process control systems, chemical processing plants, food and beverage manufacturing, and more. The valve's cold-rolled stainless steel shaft, spring-loaded stem seal, and Viton shaft wiper ensure durability and long-lasting performance, even in tough conditions. Its pilot pressure range of 60 to 150 psi and max fluid temperature of 366F make it suitable for handling water, light slurries, and steam. Trust the Asco Angle Body Valve to deliver efficient, reliable flow control for your system!
Top product features:
- Compact Design This angle body valve has a compact design which saves space in your system and makes installation easy.
- Precision Flow ManagementThe 2-way/2-position control capabilities of the valve allow you to manage fluid flow with precision for improved process control.
- Durability With its cold-rolled stainless steel shaft, spring-loaded stem seal, and Viton shaft wiper, the valve is built to last even in tough conditions.
Top product applications:
- Process Control Systems This valve can be used in process control systems to manage flow accurately and precisely.
- Chemical Processing Plants The valve is suitable for use in chemical processing plants where it can handle various fluids, including water, light slurries, and steam.
- Food & Beverage Manufacturing The 2-way/2-position control capability of this valve makes it ideal for use in food and beverage manufacturing where precise fluid flow management is essential.
Technical Specifications
- Item Angle Body Piston Valve
- Solenoid Valve Product Group Angle Body Piston Valve
- Valve Ways and Positions 2-Way/2-Position
- Valve Configuration Normally Closed
- Media - Valves Air, Inert Gases, Light Slurries, Oil, Water
- Pipe Size - Valves 1 in
- Min. Operating Pressure Differential 0 psi
- Max. Operating Pressure Differential Water 90 psi
- Max. Operating Pressure Differential Steam 90 psi
- Environmental Rating - Valves Indoor, Outdoor
- Coefficient of Volume 15.0
- Body Material - Valves 316L Stainless Steel
- Seal Material - Valves PTFE
- Orifice Dia. 1 in
- Ambient Temp. Range 15 Degrees to 140 Degrees F
- Max. Fluid Temp. 366 Degrees F
- Min. Pilot Pressure 60 psi
- Max. Pilot Pressure 150 psi
- Stem Material 431 Stainless Steel
- Disc Material 304L Stainless Steel
- Operator Size 50 mm
- Center Line Pipe Center Size 5 3/4 in
- Viscosity 2,700 SUS
- Overall Length 3 1/2 in
- Overall Width 6 1/10 in
- Overall Height 6 1/2 in
- Actuator Pilot Solenoid Valve, Not Included
Manufacturer Details
- Manufacturer: Asco
- Condensed Mfg Number: 8290A395
- MPN: 8290A395
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8481809050
- GDS Category Name: Angle Body Piston Valves
- GDS Family Name: Solenoid Valves and Coils
- GDS Segment Name: Plumbing
- UNSPSC: 40141630
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Valves
- UNSPSC Commodity ID: 30
- UNSPSC Commodity Name: Piston check valves
- UNSPSC Family ID: 14
- UNSPSC Family Name: Fluid and gas distribution
- UNSPSC Segment ID: 40
- UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components
Shipping Details
- Not For Sale In: HI AK PR
