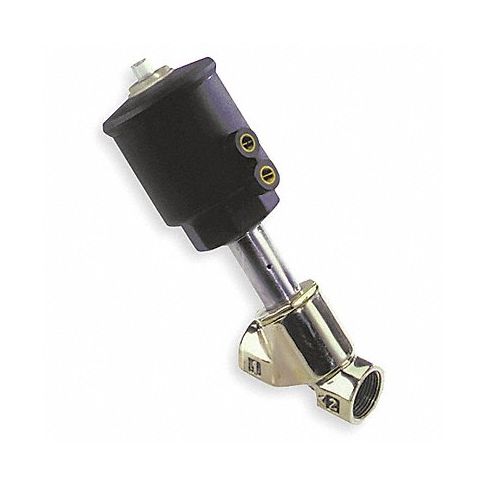

Angle Body Valve 1/2 CV 5.7 MPN:8290B002
Angle Body Valve 1/2 CV 5.7
The angle body valve with a nominal size of 1/2 inch, rated Class V and Cv of 5.7 ensures precision flow control for diverse industrial fluid handling operations. Its angled body design simplifies installation while enhancing performance, providing on-off functionality via a coil that's easy to integrate into existing systems. Manufactured from durable materials, the valve resists corrosion and wear, offering longevity in demanding applications such as water treatment, chemical processing, and general manufacturing industries where precise control of fluids is crucial to operations relying on solenoid valves and coils.
Buy Asco item #8290B002 ✯ Made in the USA ✯ and sold by a Veteran-Owned Business.
Technical Specifications
- Item Angle Body Piston Valve
- Solenoid Valve Product Group Angle Body Piston Valve
- Valve Ways and Positions 2-Way/2-Position
- Valve Configuration Normally Closed
- Media - Valves Air, Inert Gases, Light Slurries, Oil, Water
- Pipe Size - Valves 1/2 in
- Min. Operating Pressure Differential 0 psi
- Max. Operating Pressure Differential Water 240 psi
- Max. Operating Pressure Differential Steam 150 psi
- Environmental Rating - Valves Indoor, Outdoor
- Coefficient of Volume 5.7
- Body Material - Valves Bronze
- Seal Material - Valves PTFE
- Orifice Dia. 1/2 in
- Ambient Temp. Range 15 Degrees to 140 Degrees F
- Max. Fluid Temp. 366 Degrees F
- Min. Pilot Pressure 38 psi
- Max. Pilot Pressure 150 psi
- Stem Material 431 Stainless Steel
- Disc Material Brass
- Operator Size 63 mm
- Center Line Pipe Center Size 6 5/8 in
- Viscosity 2,700 SUS
- Overall Length 2 9/16 in
- Overall Width 6 7/10 in
- Overall Height 7 1/4 in
- Actuator Pilot Solenoid Valve, Not Included
Manufacturer Details
- Manufacturer: Asco
- Condensed Mfg Number: 8290B002
- MPN: 8290B002
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8481809050
- GDS Category Name: Angle Body Piston Valves
- GDS Family Name: Solenoid Valves and Coils
- GDS Segment Name: Plumbing
- UNSPSC: 40141630
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Valves
- UNSPSC Commodity ID: 30
- UNSPSC Commodity Name: Piston check valves
- UNSPSC Family ID: 14
- UNSPSC Family Name: Fluid and gas distribution
- UNSPSC Segment ID: 40
- UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components
Shipping Details
- Not For Sale In: HI AK PR
