D8578 Digital Vacuum Gaug Transmitter 100 psi MPN:302174SD02LXBLBK100#
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-cxg-2agb5

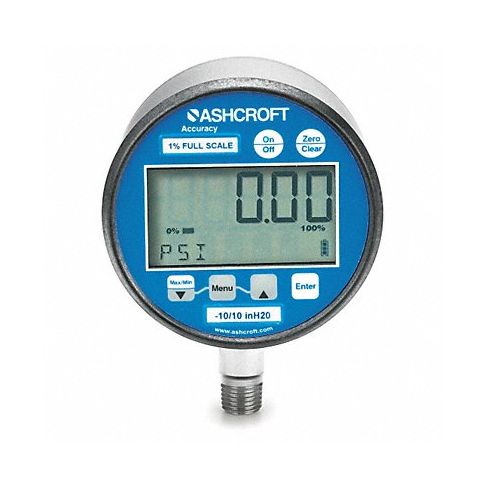

D8578 Digital Vacuum Gaug Transmitter 100 psi
Ashcroft D8578 Digital Vacuum Gaug Transmitter is a versatile pressure gauge with a range of 100 psi and accurate digital readout for professional-grade measurements. Its durable stainless steel construction ensures long-lasting performance in demanding environments, while the compact design makes it easy to use in tight spaces. The device's transmitter feature enables remote reading, making it suitable for monitoring pressure levels from a distance or using it with data logging systems. With its accuracy, reliability, and ease of use, the Ashcroft D8578 Digital Vacuum Gaug Transmitter is perfect for a wide range of industrial applications where precise pressure measurements are required.
Top product features:
- Accurate digital readout for precise pressure measurements
- Compact design for easy use in tight spaces
- Transmitter feature for remote reading or data logging
Top product applications:
- Pressure measurement in industrial and commercial settings such as oil and gas, manufacturing, and laboratories
- Monitoring pressure levels in vacuum systems or equipment
- Testing and calibration of other pressure measuring instruments
Buy Ashcroft item #302174SD02LXBLBK100# ✯ Made in the USA ✯ and sold by a Veteran-Owned Business.
Technical Specifications
- Digital Gauge with Transmitter Type Digital Pressure Gauge with Transmitter
- Item Digital Pressure Gauge with Transmitter
- Gauge Nominal Dial Size 3 in
- Basic Gauge Case Material Metal
- Basic Gauge Wetted Parts Stainless Steel
- Gauge Connection Type MNPT
- Gauge Connection Size 1/4 in
- Gauge Connection Location Bottom
- Gauge Primary Range Units psi
- Gauge Primary Range Values 0 to 100
- Digital Gauge Accuracy +/-0.25% Full Scale
- Display Units bar, ft wc, in Hg, kg/sq cm, kPa, mBar, mm Hg, MPa, psi
- Socket Material 316 Stainless Steel
- Case Material Stainless Steel
- Display LCD
- Number of Display Digits 5
- Digital Gauge Display Units bar, ft wc, in Hg, kg/sq cm, kPa, mBar, mm Hg, MPa, psi
- Resolution Dependent on Display Units Selected
- Powered By 2 AA Batteries
- Agency Compliance CSA, FM
- Gauge Operating Temp. Range -12 Degrees to 140 Degrees F
- Output 4 to 20mA
- Gauge Transmitter Required Power 12 to 30V DC
- Loop Resistance Dependent on Loop Supply Voltage
- Series 2174
- Calibration Certificate No
- Includes Instructions
- Manufacturers Warranty Length 1 yr
Manufacturer Details
- Manufacturer: Ashcroft
- Condensed Mfg Number: 302174SD02LXBLBK100
- MPN: 302174SD02LXBLBK100#
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 9026204000
- GDS Category Name: Digital Pressure and Vacuum Gauges with Transmitte
- GDS Family Name: Pressure and Vacuum Measuring
- GDS Segment Name: Test Instruments
- UNSPSC: 41111907
- UNSPSC Class ID: 19
- UNSPSC Commodity Name: Indicating and recording instruments
- UNSPSC Commodity ID: 07
- UNSPSC Commodity Name: Digital readout recorders
- UNSPSC Family ID: 11
- UNSPSC Family Name: Measuring and observing and testing instruments
- UNSPSC Segment ID: 41
- UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment
Shipping Details
- Not For Sale In: HI AK PR
Related ASINs: B08WRPP36D
Product info last updated on April 3, 2024 8:25pm UTC Category: Pressure and Vacuum Measuring
