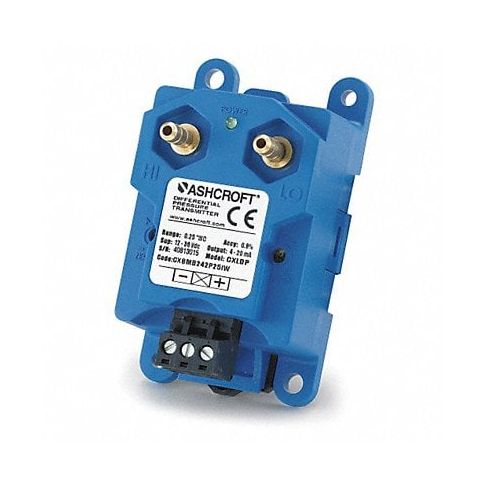

Differential Transmitter -1 to 1 in wc MPN:CX8MB2421IWL
Differential transmitters are pressure sensors used to measure the pressure differences between two separate points within a system, often employed as a switch for pumps or valves. The Model -1 to 1 inch WC has an exceptional performance range and can operate in both industrial and sanitary applications, suitable for fluids, air or steam. It features a 10 ft long cable for easy connection with the sensing elements and comes with stainless steel construction that enhances durability and resistance to harsh environments. With a wide range of applications including HVAC systems, process controls, pumps, level control, boilers, and irrigation systems, this differential transmitter is ideal for professional technicians in engineering, manufacturing, plumbing, irrigation and industrial settings. Users can rely on its accuracy and dependable performance to optimize their system's efficiency.
Technical Specifications
- Transmitter Type Compound Transmitter
- Wetted Materials - Transmitters Brass
- Range Values - Transmitter -1 to 0 to 1
- Range Units - Transmitter in wc/in wc
- Accuracy - Transmitter +/-0.80% Full Scale
- Electrical Connections - Transmitter Terminal Board
- Power Required - Transmitters 12 to 36V DC
- Process Connection Size - Transmitter 1/4 in
- Process Connection Type - Transmitter Hose Barb
- Output - Transmitter 4 to 20mA DC
- Operating Temp. - Transmitter 0 Degrees to 160 Degrees F
- Wiring Entry - Transmitter None
- Housing ABS
- NEMA Rating 1
- Loop Resistance Dependent on Loop Supply Voltage
- Max. Pressure (PSI) 15 psi
- Thermal Error 0.03% Full Scale / Degree F
- Compatible With Clean Dry Non-corrosive Gasses
- Includes Instructions
- Manufacturers Warranty Length 1 yr
Manufacturer Details
- Manufacturer: Ashcroft
- Condensed Mfg Number: CX8MB2421IWL
- MPN: CX8MB2421IWL
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 9026204000
- GDS Category Name: Standard Differential Pressure Transmitters
- GDS Family Name: Pressure and Vacuum Measuring
- GDS Segment Name: Test Instruments
- UNSPSC: 41112403
- UNSPSC Class ID: 24
- UNSPSC Commodity Name: Pressure measuring and control instruments
- UNSPSC Commodity ID: 03
- UNSPSC Commodity Name: Pressure indicators
- UNSPSC Family ID: 11
- UNSPSC Family Name: Measuring and observing and testing instruments
- UNSPSC Segment ID: 41
- UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment
Shipping Details
- Not For Sale In: HI AK PR
