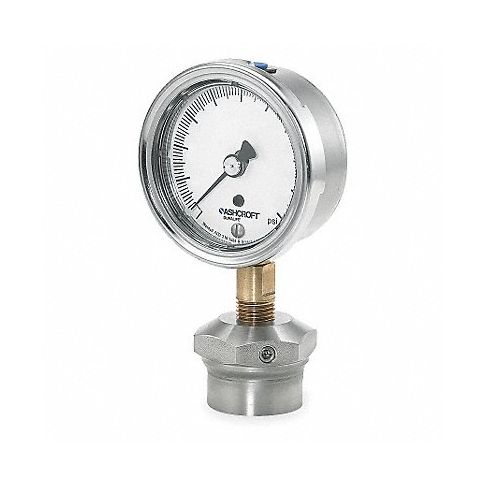

D0988 Pressure Gauge 0 to 200 psi 2-1/2In MPN:251009AW02L/310SSLXCG200

1009 Hydraulic and Pneumatic pressure gauge with seal is dependable and accurate. Glycerin-filled gauge features the PowerFlex™ movement, whose superior shock-, vibration-, and pulsation-resistance helps improve service life and reduce your maintenance costs. At the same time, the True Zero™ feature helps reduce reading errors, and ensure product safety, integrity, and system control. Connection/internal material: stainless steel.

Technical Specifications

• Item Pressure Gauge
• Gauge Application General Purpose with Seal
• Gauge Nominal Dial Size 2 1/2 in
• Basic Gauge Case Material Stainless Steel
• Basic Gauge Wetted Parts Brass / Stainless Steel
• Gauge Connection Type MNPT
• Gauge Connection Size 1/4 in
• Gauge Connection Location Bottom
• Gauge Primary Range Units psi
• Gauge Primary Range Values 0 to 200
• Gauge Accuracy +/-1.00%
• Pressure and Vacuum Gauge Type Pressure Gauge
• Gauge Panel Mountable No
• Liquid Filled No
• Gauge Primary Range Smallest Graduation 2
• Gauge Case Material 304 Stainless Steel
• Gauge Primary Range Numbered Graduations 20
• Gauge Case Color Stainless Steel
• Basic Gauge Socket Material Brass
• Gauge Socket Material Brass
• Basic Gauge Sensor Material Stainless Steel
• Gauge Sensor Material 316 Stainless Steel
• Gauge Lens Material Polycarbonate
• Gauge Filled With Glycerin
• Basic Gauge Lens Material Plastic
• Operating Temp. Range -40 Degrees to 150 Degrees F
• Gauge Special Options PLUS!(TM) Performance
• Calibration Certificate Included No
• Series 1009AW
• Includes Mini Diaphragm Seal

Manufacturer Details

• Manufacturer: Ashcroft
• Condensed Mfg Number: 251009AW02L310SSLXCG200
• MPN: 251009AW02L/310SSLXCG200

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: US
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 9026208000
• GDS Category Name: Dial Pressure Gauges with Diaphragm Seal
• GDS Family Name: Pressure and Vacuum Measuring
• GDS Segment Name: Test Instruments
• UNSPSC: 41112403
• UNSPSC Class ID: 24
• UNSPSC Commodity Name: Pressure measuring and control instruments
• UNSPSC Commodity ID: 03
• UNSPSC Commodity Name: Pressure indicators
• UNSPSC Family ID: 11
• UNSPSC Family Name: Measuring and observing and testing instruments
• UNSPSC Segment ID: 41
• UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment

Shipping Details

• Not For Sale In: HI AK PR
