D0988 Pressure Gauge 0 to 600 psi 2-1/2In MPN:251009AW02L/310SSLXCG600

Discount: See in Cart
Free Shipping
In Stock
Brand: Ashcroft
Part #: 251009AW02L/310SSLXCG600
UPC: 783156599054
SKU
226-CXG-2C565
$152.29

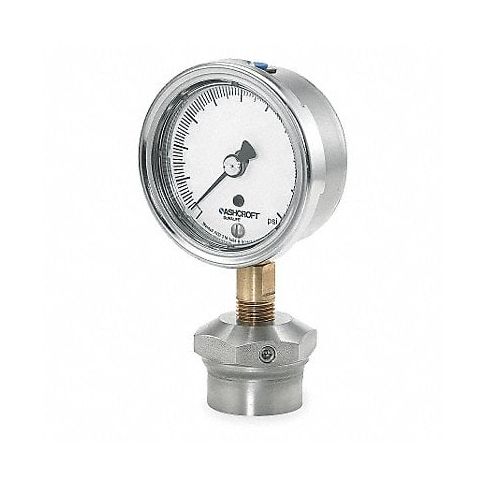

D0988 Pressure Gauge 0 to 600 psi 2-1/2In
1009 Hydraulic and Pneumatic pressure gauge with seal is dependable and accurate. Glycerin-filled gauge features the PowerFlexâ„¢ movement, whose superior shock-, vibration-, and pulsation-resistance helps improve service life and reduce your maintenance costs. At the same time, the True Zeroâ„¢ feature helps reduce reading errors, and ensure product safety, integrity, and system control. Connection/internal material: stainless steel.

Technical Specifications

  • Item Pressure Gauge
  • Gauge Application General Purpose with Seal
  • Gauge Nominal Dial Size 2 1/2 in
  • Basic Gauge Case Material Stainless Steel
  • Basic Gauge Wetted Parts Brass / Stainless Steel
  • Gauge Connection Type MNPT
  • Gauge Connection Size 1/4 in
  • Gauge Connection Location Bottom
  • Gauge Primary Range Units psi
  • Gauge Primary Range Values 0 to 600
  • Gauge Accuracy +/-1.00%
  • Pressure and Vacuum Gauge Type Pressure Gauge
  • Gauge Panel Mountable No
  • Liquid Filled Yes
  • Gauge Primary Range Smallest Graduation 10
  • Gauge Case Material 304 Stainless Steel
  • Gauge Primary Range Numbered Graduations 50
  • Gauge Case Color Stainless Steel
  • Basic Gauge Socket Material Brass
  • Gauge Socket Material Brass
  • Basic Gauge Sensor Material Stainless Steel
  • Gauge Sensor Material 316 Stainless Steel
  • Gauge Lens Material Polycarbonate
  • Gauge Filled With Glycerin
  • Basic Gauge Lens Material Plastic
  • Operating Temp. Range -40 Degrees to 150 Degrees F
  • Gauge Special Options PLUS!(TM) Performance
  • Calibration Certificate Included No
  • Series 1009AW
  • Includes Mini Diaphragm Seal

Manufacturer Details

  • Manufacturer: Ashcroft
  • Condensed Mfg Number: 251009AW02L310SSLXCG600
  • MPN: 251009AW02L/310SSLXCG600

Label Details

  • Hazardous Material: N
  • Green Material Flag: N
  • Country of Origin: US
  • CA Prop 65 Wht Label: N

Classification Details

  • Harmonization Code: 9026208000
  • GDS Category Name: Dial Pressure Gauges with Diaphragm Seal
  • GDS Family Name: Pressure and Vacuum Measuring
  • GDS Segment Name: Test Instruments
  • UNSPSC: 41112403
  • UNSPSC Class ID: 24
  • UNSPSC Commodity Name: Pressure measuring and control instruments
  • UNSPSC Commodity ID: 03
  • UNSPSC Commodity Name: Pressure indicators
  • UNSPSC Family ID: 11
  • UNSPSC Family Name: Measuring and observing and testing instruments
  • UNSPSC Segment ID: 41
  • UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment

Shipping Details

  • Not For Sale In: HI AK PR
Product info last updated on April 3, 2024 8:25pm UTC Category: Pressure and Vacuum Measuring
