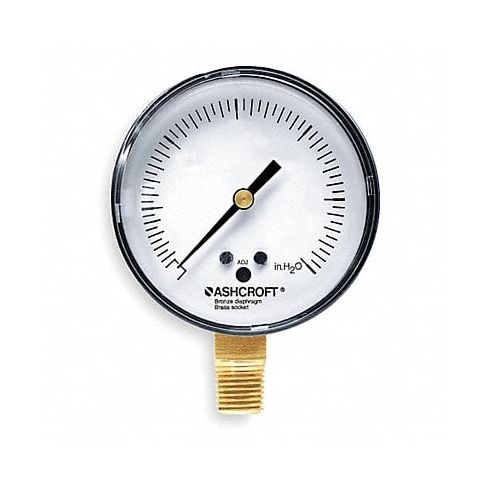

K4548 Pressure Gauge 0 to 20 oz/0 to 35 H2O MPN:25 1490A 02L 20 OZ/H2O

Gauge is ideal for use where ambient corrosion is a concern. Designed with stainless steel case and ring that offers excellent resistance to chemical, weather, and corrosion attack. Model features 2-1/2" dial for low-pressure applications.

Technical Specifications

• Item Pressure Gauge
• Gauge Application Low Pressure
• Gauge Nominal Dial Size 2 1/2 in
• Basic Gauge Case Material Plastic
• Basic Gauge Wetted Parts Brass / Copper
• Gauge Connection Type MNPT
• Gauge Connection Size 1/4 in
• Gauge Connection Location Bottom
• Gauge Primary Range Units oz/sq in
• Gauge Primary Range Values 0 to 20
• Gauge Secondary Range Units in wc
• Gauge Secondary Range Values 0 to 35
• Gauge Accuracy +/-1.00%
• Pressure and Vacuum Gauge Type Pressure Gauge
• Liquid Filled No
• Gauge Primary Range Smallest Graduation 0.5
• Gauge Case Material Glass Filled Polysulfone
• Gauge Case Color Black
• Basic Gauge Socket Material Brass
• Gauge Socket Material Brass
• Basic Gauge Sensor Material Copper
• Gauge Sensor Material Beryllium Copper
• Gauge Lens Material Polycarbonate
• Basic Gauge Lens Material Plastic
• Operating Temp. Range -4 Degrees to 140 Degrees F
• Calibration Certificate Included No
• Series 1490A

Manufacturer Details

• Manufacturer: Ashcroft
• Condensed Mfg Number: 251490A02L20OZH2O
• MPN: 25 1490A 02L 20 OZ/H2O

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: US
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 9026208000
• GDS Category Name: Dial Low Pressure Gauges
• GDS Family Name: Pressure and Vacuum Measuring
• GDS Segment Name: Test Instruments
• UNSPSC: 41112403
• UNSPSC Class ID: 24
• UNSPSC Commodity Name: Pressure measuring and control instruments
• UNSPSC Commodity ID: 03
• UNSPSC Commodity Name: Pressure indicators
• UNSPSC Family ID: 11
• UNSPSC Family Name: Measuring and observing and testing instruments
• UNSPSC Segment ID: 41
• UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment

Shipping Details

• Not For Sale In: HI AK PR
