D1018 Pressure Gauge 0 to 100 psi 3-1/2In MPN:35-1032S-20L-100
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-CXG-2C932

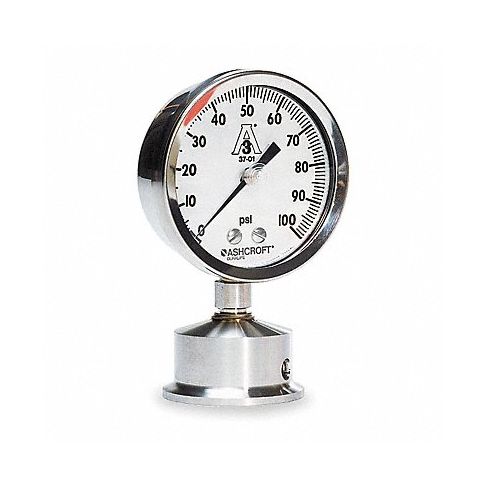

D1018 Pressure Gauge 0 to 100 psi 3-1/2In
The D1018 Pressure Gauge is an essential tool for measuring pressure levels in various applications such as industrial, laboratory or automotive settings. With a range of 0 to 100 psi, this gauge is versatile and can cater to many industries' pressure monitoring needs. The 3-1/2In size ensures easy installation on machines and equipment, while its durable construction guarantees long-lasting performance. The gauge is also accurate in measuring pressure changes ensuring consistency across multiple uses. Overall, the D1018 Pressure Gauge provides a cost-effective way of monitoring and managing your systems' or machines' pressure levels.
Sanitary Gauges• Accuracy: ±1.5% Polycarbonate lens Glycerin-filled seal, dry gauge Stainless steel case Connection/internal material: stainless steelFeature electropolished process connection. Ambient operating temp.: -40° to 150°F.
Technical Specifications
- Item Pressure Gauge
- Gauge Application Sanitary
- Gauge Nominal Dial Size 3 1/2 in
- Basic Gauge Case Material Stainless Steel
- Basic Gauge Wetted Parts Stainless Steel
- Gauge Connection Type Triclamp
- Gauge Connection Size 2 in
- Gauge Connection Location Bottom
- Gauge Primary Range Units psi
- Gauge Primary Range Values 0 to 100
- Gauge Accuracy +/-1.50%
- Pressure and Vacuum Gauge Type Pressure Gauge
- Gauge Panel Mountable No
- Liquid Filled Yes
- Gauge Primary Range Smallest Graduation 1
- Gauge Case Material 300 Stainless Steel
- Gauge Primary Range Numbered Graduations 10
- Gauge Case Color Stainless Steel
- Basic Gauge Socket Material Stainless Steel
- Gauge Socket Material 316 Stainless Steel
- Basic Gauge Sensor Material Stainless Steel
- Gauge Sensor Material 316 Stainless Steel
- Gauge Lens Material Polycarbonate
- Gauge Filled With Glycerin
- Basic Gauge Lens Material Plastic
- Operating Temp. Range -40 Degrees to 150 Degrees F
- Gauge Special Options PLUS!(TM) Performance
- Calibration Certificate Included No
- Series 1032S
Manufacturer Details
- Manufacturer: Ashcroft
- Condensed Mfg Number: 351032S20L100
- MPN: 35-1032S-20L-100
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 9026208000
- GDS Category Name: Dial Sanitary Clamping Pressure Gauges
- GDS Family Name: Pressure and Vacuum Measuring
- GDS Segment Name: Test Instruments
- UNSPSC: 41112403
- UNSPSC Class ID: 24
- UNSPSC Commodity Name: Pressure measuring and control instruments
- UNSPSC Commodity ID: 03
- UNSPSC Commodity Name: Pressure indicators
- UNSPSC Family ID: 11
- UNSPSC Family Name: Measuring and observing and testing instruments
- UNSPSC Segment ID: 41
- UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on April 3, 2024 8:25pm UTC
Category: Pressure and Vacuum Measuring
