Pressure Switch SPDT 50 to 500 psi 1/4 MPN:APAN41H012LB02500#-NSR
Free Shipping
In Stock

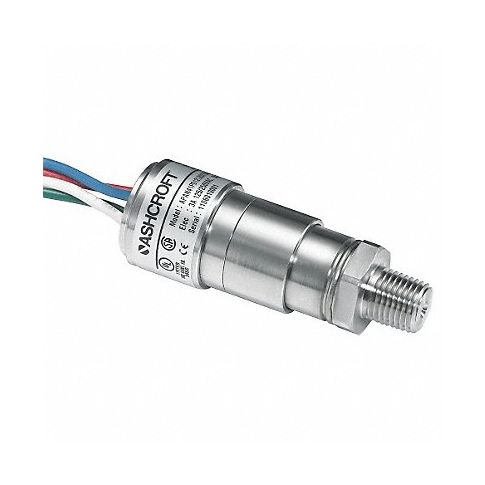

The Ashcroft Pressure Switch SPDT 50 to 500 psi 1/4 in is a rugged pressure switch designed for demanding industrial applications. This stainless steel switch features a fully encased design that prevents moisture from corroding the contacts, ensuring reliable performance and long-lasting durability. Its pressure range of 50 to 500 psi makes it suitable for a wide range of high-pressure environments, including offshore oil rigs, chemical plants, pulp and paper mills, autoclaves and sterilizers, and hydraulic and pneumatic braking systems. The switch's 1/4 in MNPT process connection ensures easy installation, while its 316 stainless steel housing provides superior corrosion resistance for enhanced performance. The Ashcroft Pressure Switch SPDT offers versatile applications and numerous benefits, making it an essential tool for industries that require precision pressure control.
Top product features:
- Fully encased design to prevent moisture from corroding switch contacts Ensures reliable performance and long-lasting durability.
- Stainless steel construction for protection in demanding, high-temperature applications Provides superior corrosion resistance for enhanced performance.
- 1/4 in MNPT process connection for easy installation Saves time and effort during the installation process.
Top product applications:
- Offshore oil rigs Ideal for use in harsh marine environments where durability and corrosion resistance are crucial.
- Chemical and petrochemical plants Perfect for industrial settings where high-pressure, high-temperature conditions prevail.
- Hydraulic and pneumatic braking systems Ideal for use in machinery and equipment that require precise pressure control for optimal performance.
Technical Specifications
- Item Pressure Switch
- Range 50 to 500 psi
- Process Connection 1/4 in MNPT
- Housing Material 316 Stainless Steel
- Wetted Materials 316 Stainless Steel Piston and Buna-N O-Ring
- Compatible With Air and Liquids
- Electrical Connection 3-18 AWG PVC Insulated 12 in Base Wire Leads
- Contact Form SPDT
- Circuit Type Not Applicable
- AC Contact Rating 5A at 125/250V AC
- DC Contact Rating 3A @ 28V DC Inductive, 5A @ 28V DC Resistive
- NEMA Rating 6
- IP Rating 67
- Burst Pressure 8,000 psi
- Operating Temp. Range -40 Degrees to 210 Degrees F
- Off Set Point Field Adjustable
- On Set Point Field Adjustable
- Power Required 10A at 125/250V AC, 6A at 30V DC
- Standards CE, CRN, CSA, ROHS, UL
Manufacturer Details
- Manufacturer: Ashcroft
- Condensed Mfg Number: APAN41H012LB02500NSR
- MPN: APAN41H012LB02500#-NSR
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536509065
- GDS Category Name: Miniature Pressure Switches
- GDS Family Name: Switches
- GDS Segment Name: Electrical
- UNSPSC: 39121506
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Switches and controls and relays and accessories
- UNSPSC Commodity ID: 06
- UNSPSC Commodity Name: Pressure switches
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on March 25, 2024 9:24am UTC Category: Switches
