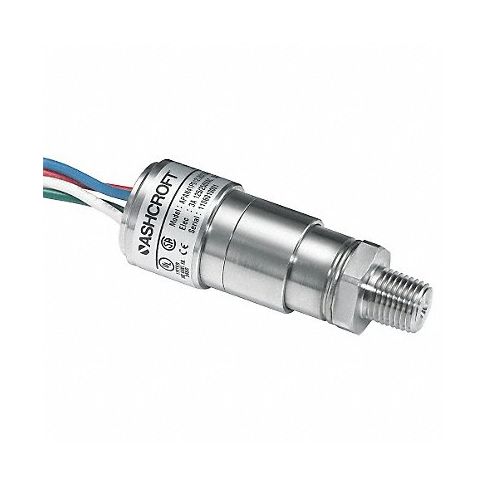

Pressure Switch SPDT 500 to 5000psi 1/4 MPN:APAN41H012LB025000#-NSR
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-CXG-36K024
Pressure Switch SPDT 500 to 5000psi 1/4
Its suitable for pressure sensitive control systems, including those related with compressors, air tools, hydraulic equipment, and even for liquid level control to ensure proper functioning; this device allows professionals across industries such as mechanics, engineers or technicians to manage pressure more effectively by simply monitoring either on or off the state thus guaranteeing precise pressures for reliable operation without damaging machinery cost-effectively time after time.
This pressure switch features stainless steel construction for protection in demanding, high-temperature applications. It is designed for use in rugged conditions including offshore oil rigs, chemical and petrochemical plants, pulp and paper mills, autoclaves and sterilizers, and hydraulic and pneumatic braking systems. It is fully encased to prevent moisture from corroding switch contacts.
Technical Specifications
- Item Pressure Switch
- Range 500 to 5000 psi
- Process Connection 1/4 in MNPT
- Housing Material 316 Stainless Steel
- Wetted Materials 316 Stainless Steel Piston and Buna-N O-Ring
- Compatible With Air and Liquids
- Electrical Connection 3-18 AWG PVC Insulated 12 in Base Wire Leads
- Contact Form SPDT
- Circuit Type Not Applicable
- AC Contact Rating 5A at 125/250V AC
- DC Contact Rating 3A @ 28V DC Inductive, 5A @ 28V DC Resistive
- NEMA Rating 6
- IP Rating 67
- Burst Pressure 8,000 psi
- Operating Temp. Range -40 Degrees to 210 Degrees F
- Off Set Point Field Adjustable
- On Set Point Field Adjustable
- Power Required 10A at 125/250V AC, 6A at 30V DC
- Standards CE, CRN, CSA, ROHS, UL
Manufacturer Details
- Manufacturer: Ashcroft
- Condensed Mfg Number: APAN41H012LB025000NSR
- MPN: APAN41H012LB025000#-NSR
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536509065
- GDS Category Name: Miniature Pressure Switches
- GDS Family Name: Switches
- GDS Segment Name: Electrical
- UNSPSC: 39121506
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Switches and controls and relays and accessories
- UNSPSC Commodity ID: 06
- UNSPSC Commodity Name: Pressure switches
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on March 25, 2024 9:24am UTC
