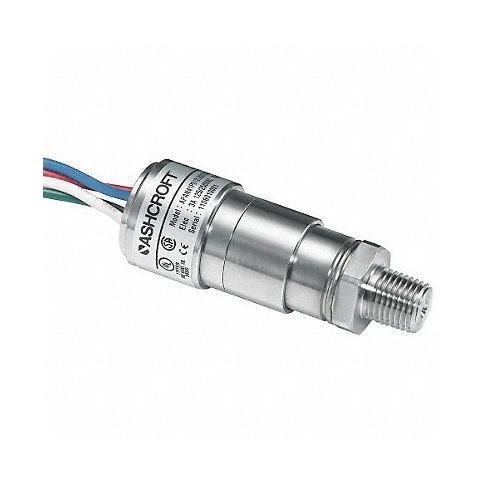

Pressure Switch SPDT 8 to 60 psi 1/4 MPN:APAN41H00MHS0260#-NSR
Free Shipping
In Stock
Introducing the Ashcroft Pressure Switch SPDT 8 to 60 psi 1/4 , a stainless steel powerhouse built to withstand demanding industrial environments. With its IP67-rated housing and 316 stainless steel construction, this pressure switch is designed for rugged conditions such as offshore oil rigs, chemical and petrochemical plants, pulp and paper mills, autoclaves and sterilizers, and hydraulic and pneumatic braking systems. Its range of 8 to 60 psi makes it versatile enough for a variety of applications, while its MNPT process connection ensures easy installation. The SPDT switch function allows for on/off or momentary operation, making it an excellent choice for controlling pressure in a wide range of machinery and equipment. With its robust construction and reliable performance, the Ashcroft Pressure Switch SPDT 8 to 60 psi 1/4 is an ideal solution for any industrial setting where durability and precision are essential.
Top product features:
- Stainless Steel Construction: Ensures durability and corrosion resistance in demanding industrial environments.
- IP67 Rating: Provides protection against water and dust ingress, ensuring reliable performance even in harsh conditions.
- MNPT Process Connection: Allows for easy installation and compatibility with a wide range of machinery and equipment.
Top product applications:
- Process control in industries such as oil and gas production, chemical and petrochemical processing, pulp and paper manufacturing.
- Machinery and equipment that require pressure regulation for safety, efficiency, or performance optimization.
- Braking systems for hydraulic and pneumatic applications, where precision and reliability are critical.
Technical Specifications
- Item Pressure Switch
- Range 8 to 60 psi
- Process Connection 1/4 in MNPT
- Housing Material 316 Stainless Steel
- Wetted Materials 316 Stainless Steel Welded Diaphragm
- Compatible With Air and Liquids
- Electrical Connection Micro DIN Connector
- Contact Form SPDT
- Circuit Type Not Applicable
- AC Contact Rating 5A at 125/250V AC
- DC Contact Rating 3A @ 28V DC Inductive, 5A @ 28V DC Resistive
- NEMA Rating 6
- IP Rating 67
- Burst Pressure 1,000 psi
- Operating Temp. Range -40 Degrees to 210 Degrees F
- Off Set Point Field Adjustable
- On Set Point Field Adjustable
- Power Required 10A at 125/250V AC, 6A at 30V DC
- Standards CE, CRN, CSA, ROHS, UL
Manufacturer Details
- Manufacturer: Ashcroft
- Condensed Mfg Number: APAN41H00MHS0260NSR
- MPN: APAN41H00MHS0260#-NSR
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536509065
- GDS Category Name: Miniature Pressure Switches
- GDS Family Name: Switches
- GDS Segment Name: Electrical
- UNSPSC: 39121506
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Switches and controls and relays and accessories
- UNSPSC Commodity ID: 06
- UNSPSC Commodity Name: Pressure switches
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on October 10, 2024 2:10pm UTC Category: Switches
