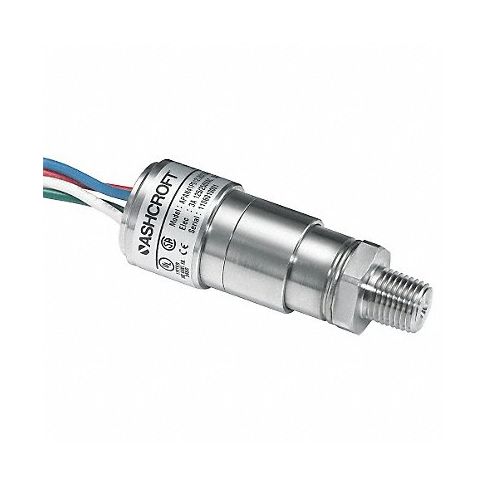

Pressure Switch SPDT 10 to 100 psi 1/4
The Pressure Switch SPDT is ideal for managing liquids or gases, making it suitable for a wide variety of industrial settings that require precision monitoring of pressure levels to protect machines and people. With its 10-100 psi pressure range, this switch provides accurate control of up to two relay loads at once while offering dependable performance that can be relied on consistently. Affordably priced, the Pressure Switch SPDT offers unbeatable value for money in its class, making it an excellent addition to any inventory seeking reliable solutions without compromise on quality or functionality.
This pressure switch features stainless steel construction for protection in demanding, high-temperature applications. It is designed for use in rugged conditions including offshore oil rigs, chemical and petrochemical plants, pulp and paper mills, autoclaves and sterilizers, and hydraulic and pneumatic braking systems. It is fully encased to prevent moisture from corroding switch contacts.
Technical Specifications
- Item Pressure Switch
- Range 10 to 100 psi
- Process Connection 1/4 in MNPT
- Housing Material 316 Stainless Steel
- Wetted Materials 316 Stainless Steel Welded Diaphragm
- Compatible With Air and Liquids
- Electrical Connection Micro DIN Connector
- Contact Form SPDT
- Circuit Type Not Applicable
- AC Contact Rating 5A at 125/250V AC
- DC Contact Rating 3A @ 28V DC Inductive, 5A @ 28V DC Resistive
- NEMA Rating 6
- IP Rating 67
- Burst Pressure 1,000 psi
- Operating Temp. Range -40 Degrees to 210 Degrees F
- Off Set Point Field Adjustable
- On Set Point Field Adjustable
- Power Required 10A at 125/250V AC, 6A at 30V DC
- Standards CE, CRN, CSA, ROHS, UL
Manufacturer Details
- Manufacturer: Ashcroft
- Condensed Mfg Number: APAN41H00MHS02100NSR
- MPN: APAN41H00MHS02100#-NSR
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536509065
- GDS Category Name: Miniature Pressure Switches
- GDS Family Name: Switches
- GDS Segment Name: Electrical
- UNSPSC: 39121506
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Switches and controls and relays and accessories
- UNSPSC Commodity ID: 06
- UNSPSC Commodity Name: Pressure switches
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
