Pressure Switch SPDT 20 to 200 psi 1/4 MPN:APAN41H00MHB02200#-NSR
Free Shipping
In Stock

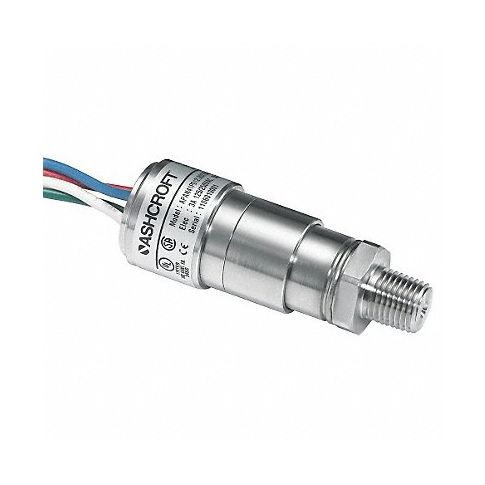

The Ashcroft Pressure Switch SPDT 20 to 200 psi 1/4 inch is ideal for precise pressure control in demanding high-temperature environments. This stainless steel pressure switch provides reliability and durability in rugged applications such as offshore oil rigs, chemical plants, paper mills, sterilizers, and braking systems. Its wide range of 20 to 200 psi makes it suitable for various industries, while its MNPT process connection ensures compatibility with multiple systems. The 316 stainless steel housing resists corrosion and ensures longevity, and the wetted materials are perfect for harsh environments. This pressure switch offers significant benefits in terms of accuracy, performance, and durability, making it an ideal solution for applications requiring precise pressure control.
Top product features:
- Stainless steel construction for durability and resistance to corrosion in high-temperature environments.
- Wide range of 20 to 200 psi suitable for various industries and applications.
- MNPT process connection ensures compatibility with multiple systems.
Top product applications:
- Offshore oil rigs for controlling and monitoring pressure in drilling operations.
- Chemical and petrochemical plants to regulate the flow of gases or liquids through pipelines.
- Hydraulic and pneumatic braking systems on vehicles and machinery to ensure optimal braking performance under varying pressures.
Technical Specifications
- Item Pressure Switch
- Range 20 to 200 psi
- Process Connection 1/4 in MNPT
- Housing Material 316 Stainless Steel
- Wetted Materials 316 Stainless Steel Piston and Buna-N O-Ring
- Compatible With Air and Liquids
- Electrical Connection Micro DIN Connector
- Contact Form SPDT
- Circuit Type Not Applicable
- AC Contact Rating 5A at 125/250V AC
- DC Contact Rating 3A @ 28V DC Inductive, 5A @ 28V DC Resistive
- NEMA Rating 6
- IP Rating 67
- Burst Pressure 2,500 psi
- Operating Temp. Range -40 Degrees to 210 Degrees F
- Off Set Point Field Adjustable
- On Set Point Field Adjustable
- Power Required 10A at 125/250V AC, 6A at 30V DC
- Standards CE, CRN, CSA, ROHS, UL
Manufacturer Details
- Manufacturer: Ashcroft
- Condensed Mfg Number: APAN41H00MHB02200NSR
- MPN: APAN41H00MHB02200#-NSR
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536509065
- GDS Category Name: Miniature Pressure Switches
- GDS Family Name: Switches
- GDS Segment Name: Electrical
- UNSPSC: 39121506
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Switches and controls and relays and accessories
- UNSPSC Commodity ID: 06
- UNSPSC Commodity Name: Pressure switches
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on March 25, 2024 9:24am UTC Category: Switches
