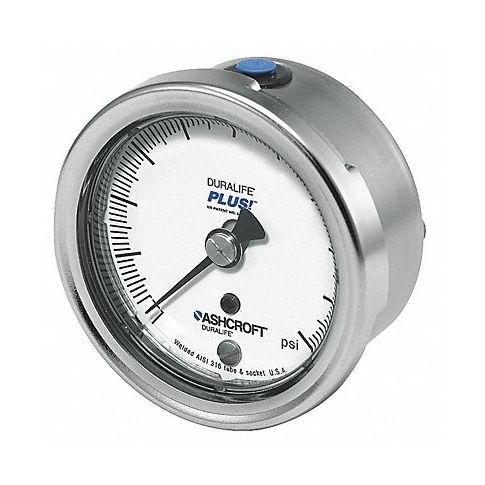

D0994 Pressure Gauge 0 to 30 psi 2-1/2In 1/4In MPN:251009SW02BX6B30
Free Shipping
In Stock
The D0994 pressure gauge is a top choice for compressed gas or vacuum applications requiring precise readings of pressure variations due to its versatile dial face's ability to display from 0-30 psi, in either positive or negative readings while having an accuracy of +/-1% thus ensuring reliable monitoring at all times with its large 2.5 diameter along with compactness in size being easy to install measuring only 2.5 making it suitable for machinery operators, mechanics, laboratories working within chemical plants and engineering departments where an efficient measurement tool is crucial to accomplish successful operations safely while reducing the risk of mishaps from inconsistent pressures levels while offering cost efficiency without compromising accuracy when dealing with compressed gases or vacuum processes.
Technical Specifications
- Item Pressure Gauge
- Gauge Application Oxygen Service Cleaned
- Gauge Nominal Dial Size 2 1/2 in
- Basic Gauge Case Material Stainless Steel
- Basic Gauge Wetted Parts Stainless Steel
- Gauge Connection Type MNPT
- Gauge Connection Size 1/4 in
- Gauge Connection Location Lower Back
- Gauge Primary Range Units psi
- Gauge Primary Range Values 0 to 30
- Gauge Accuracy +/-1.00%
- Pressure and Vacuum Gauge Type Pressure Gauge
- Gauge Panel Mountable No
- Liquid Filled No
- Gauge Primary Range Smallest Graduation 0.5
- Gauge Case Material 304 Stainless Steel
- Gauge Case Color Stainless Steel
- Basic Gauge Socket Material Stainless Steel
- Gauge Socket Material 316 Stainless Steel
- Basic Gauge Sensor Material Stainless Steel
- Gauge Sensor Material 316 Stainless Steel
- Gauge Lens Material Polycarbonate
- Basic Gauge Lens Material Plastic
- Operating Temp. Range -40 Degrees to 150 Degrees F
- Gauge Special Options PLUS!(TM) Performance
- Calibration Certificate Included No
- Series 1009
- Manufacturers Warranty Length 5 yr
Manufacturer Details
- Manufacturer: Ashcroft
- Condensed Mfg Number: 251009SW02BX6B30
- MPN: 251009SW02BX6B30
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 9026208000
- GDS Category Name: Compressed Gas Dial Pressure Gauges
- GDS Family Name: Pressure and Vacuum Measuring
- GDS Segment Name: Test Instruments
- UNSPSC: 41112403
- UNSPSC Class ID: 24
- UNSPSC Commodity Name: Pressure measuring and control instruments
- UNSPSC Commodity ID: 03
- UNSPSC Commodity Name: Pressure indicators
- UNSPSC Family ID: 11
- UNSPSC Family Name: Measuring and observing and testing instruments
- UNSPSC Segment ID: 41
- UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment
Shipping Details
- Not For Sale In: HI AK PR
