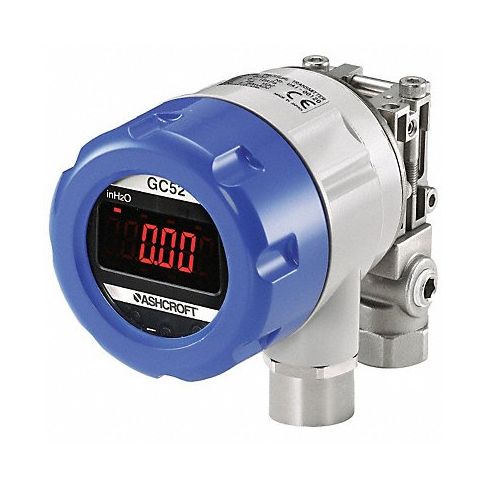

Differential Transmitter 0 to 40 in wc MPN:GC527F0242CD40IWL

GC52 Series
• Backlit 3-1/2-digit LCD rotates in 90° increments Process connection: 1/4" NPT female Electrical connection: 1/2" NPT female conduit NEMA 4X (IP65) Epoxy-coated aluminum die-cast housing
Rangeable wet/wet differential pressure transmitters are for applications requiring low differential pressure measurement with static pressure to 300 psi. Push-button configurable ranges. Scaling function. For fluids and gases compatible with 316 stainless steel, Viton®, and alumina ceramic. Wetted materials are 316 stainless steel.
Transducers with Display

Technical Specifications

• Transmitter Type Compound Transmitter
• Wetted Materials - Transmitters 316 Stainless Steel
• Range Values - Transmitter -40 to 0 to 40
• Range Units - Transmitter in wc/in wc
• Accuracy - Transmitter +/-0.50% Full Scale
• Electrical Connections - Transmitter Terminal Board
• Power Required - Transmitters 12 to 32V DC
• Process Connection Size - Transmitter 1/4 in
• Process Connection Type - Transmitter FNPT
• Shape - Transmitter Irregular
• Overall Height - Transmitter 5.12 in
• Overall Depth - Transmitter 4.49 in
• Diameter - Transmitter 2.56 in
• Connection Location - Transmitter Bottom
• Output - Transmitter 4 to 20mA DC
• Display - Transmitter 3-1/2 Digit Backlit LCD
• Operating Temp. - Transmitter 14 Degrees to 140 Degrees F
• Wiring Entry - Transmitter 1/2 in FNPT
• Features Push Button Configuration, Rotatable Display, IP65 Rating
• Loop Resistance Dependent on Loop Supply Voltage
• Housing Aluminum
• NEMA Rating 4X
• Max. Pressure (PSI) 300 psi
• Thermal Error +/-0.03% Full Scale
• Includes Instructions
• Manufacturers Warranty Length 1 yr
• Display Units in wc

Manufacturer Details

• Manufacturer: Ashcroft
• Condensed Mfg Number: GC527F0242CD40IWL
• MPN: GC527F0242CD40IWL

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: JP
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 9026204000
• GDS Category Name: Indicating Differential Pressure Transmitters
• GDS Family Name: Pressure and Vacuum Measuring
• GDS Segment Name: Test Instruments
• UNSPSC: 41112107
• UNSPSC Class ID: 21
• UNSPSC Commodity Name: Transducers
• UNSPSC Commodity ID: 07
• UNSPSC Commodity Name: Electro pneumatic transducers
• UNSPSC Family ID: 11
• UNSPSC Family Name: Measuring and observing and testing instruments
• UNSPSC Segment ID: 41
• UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment

Shipping Details

• Not For Sale In: HI AK PR
