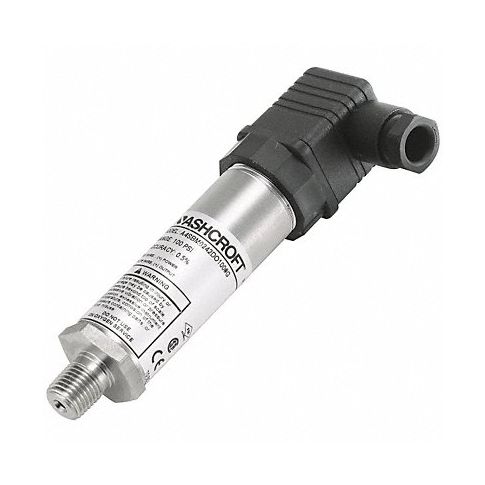

D3836 Pressure Transmitter 0 to 200 psi Range MPN:A4SBM0242D0200#
Free Shipping
In Stock
The Ashcroft D3836 pressure transmitter is an exceptional instrument for precise measurement of pressure in industrial settings. With its range of 0 to 200 psi, this transmitter is suitable for a wide array of applications across various industries. Its intrinsically safe design and compatibility with 316 stainless steel make it perfect for hazardous locations where safety is paramount. The digital compensation feature enhances the accuracy of pressure readings to an impressive +/-0.25%. In addition, the transmitter comes with a wetted material made from durable 316L stainless steel, ensuring longevity and robust performance even in challenging environments. From oil and gas to chemical processing, power generation to pharmaceuticals, the Ashcroft D3836 is the ultimate pressure transmitter for demanding applications.
Top product features:
- Intrinsically safe design
- Suitable for hazardous locations
- Digital compensation for enhanced accuracy
Top product applications:
- Process Control monitoring and managing pressure levels in industrial processes
- Hazardous Area Monitoring measuring pressure in environments with potentially explosive atmospheres
- Quality Control ensuring consistent product quality by maintaining optimal pressure conditions during production
Technical Specifications
- Transmitter Type Intrinsically Safe Pressure Transmitter
- Wetted Materials - Transmitters 316L Stainless Steel
- Range Values - Transmitter 0 to 200
- Range Units - Transmitter psi
- Accuracy - Transmitter +/-0.25%
- Electrical Connections - Transmitter 4 Pin Hirschmann Style A DIN 43650-A Connector
- Power Required - Transmitters 12 to 30V DC
- Process Connection Size - Transmitter 1/4 in
- Process Connection Type - Transmitter MNPT
- Output - Transmitter 4 to 20mA DC
- Operating Temp. - Transmitter -40 Degrees to 257 Degrees F
- Safety Rating - Transmitter Class I, II and III, Div. 1 and 2, Groups A, B, C, D, F, G
- Wiring Entry - Transmitter 1/2 in FNPT
- Housing 304 Stainless Steel
- NEMA Rating 4X
- Loop Resistance Dependent on Loop Supply Voltage
- Max. Pressure (PSI) 400 psi
- Thermal Error +/-2% (-4 Degrees to 185 Degrees F)
- Compatible With Any Process Compatible with 316 Stainless Steel
- Includes Instructions
- Manufacturers Warranty Length 1 yr
Manufacturer Details
- Manufacturer: Ashcroft
- Condensed Mfg Number: A4SBM0242D0200
- MPN: A4SBM0242D0200#
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 9026204000
- GDS Category Name: Standard Pressure and Vacuum Transmitters
- GDS Family Name: Pressure and Vacuum Measuring
- GDS Segment Name: Test Instruments
- UNSPSC: 41112107
- UNSPSC Class ID: 21
- UNSPSC Commodity Name: Transducers
- UNSPSC Commodity ID: 07
- UNSPSC Commodity Name: Electro pneumatic transducers
- UNSPSC Family ID: 11
- UNSPSC Family Name: Measuring and observing and testing instruments
- UNSPSC Segment ID: 41
- UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on April 4, 2024 7:47am UTC Category: Pressure and Vacuum Measuring
