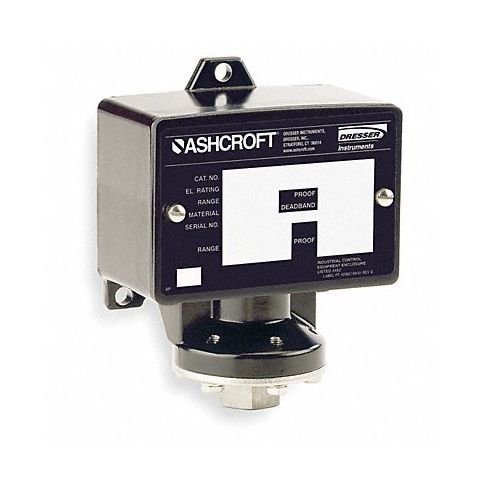

Pressure Switch Diaphragm 20 to 200 psi MPN:B424VXCYLM200

This pressure switch is designed for use with pumps, compressors, hydraulic systems, and HVAC equipment in harsh environments. The design features a watertight enclosure, fixed deadband, stainless steel pressure connection, and Viton® actuator seal.

Technical Specifications

• Item Pressure Switch
• Differential 5 to 13 psi
• Range 20 to 200 psi
• Port Type 1-Port 1/4 in FNPT
• Contact Form SPDT
• NEMA Rating 13, 3, 4, 4X
• Actuation Type Diaphragm
• Action Standard
• Series B
• Factory On/Off Setting 90% of Range
• AC Contact Rating 15A @ 125/250/480V
• DC Contact Rating 0.25A @ 250V, 0.5A @ 125V, 6A @ 30V

Manufacturer Details

• Manufacturer: Ashcroft
• Condensed Mfg Number: B424VXCYLM200
• MPN: B424VXCYLM200

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: US
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8536509065
• GDS Category Name: Industrial Machine Tool Pressure Switches
• GDS Family Name: Switches
• GDS Segment Name: Electrical
• UNSPSC: 39121506
• UNSPSC Class ID: 15
• UNSPSC Commodity Name: Switches and controls and relays and accessories
• UNSPSC Commodity ID: 06
• UNSPSC Commodity Name: Pressure switches
• UNSPSC Family ID: 12
• UNSPSC Family Name: Electrical equipment and components and supplies
• UNSPSC Segment ID: 39
• UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies

Shipping Details

• Not For Sale In: HI AK PR
