D0749 Pressure Gauge 0 to 50 In H2O MPN:351132FD25SXCYLM50IWD

Discount: See in Cart
Free Shipping
In Stock
Brand: Ashcroft
Part #: 351132FD25SXCYLM50IWD
UPC: 00783029143070
SKU
226-CXO-5LB64
$299.49

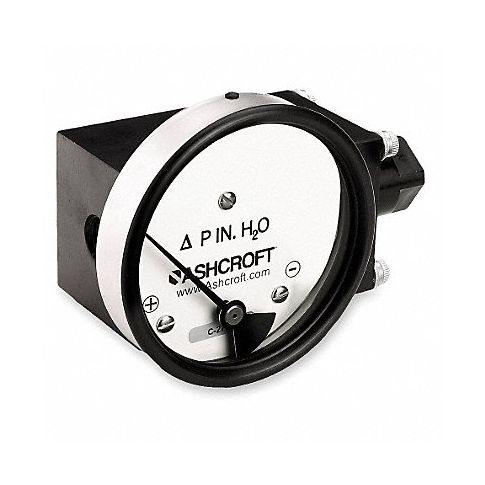

D0749 Pressure Gauge 0 to 50 In H2O
Differential Pressure Gauges for Air or Noncorrosive Liquid
Ashcroft®
• Accuracy: ±2% full scale 1/4" NPT pressure connection Buna N seals
Measure air or noncorrosive liquid differential pressures for filtration monitoring, flow measurement, leak detection, and pump head monitoring.

Technical Specifications

  • Differential Pressure Gauge Type Differential Pressure Gauge
  • Item Differential Pressure Gauge
  • Gauge Nominal Dial Size 5 in
  • Basic Gauge Case Material Plastic
  • Basic Gauge Wetted Parts PTFE / Buna-N / Viton or EPDM
  • Differential Gauge Connection Type FNPT and MNPT
  • Differential Gauge Connection Size 1/4 in
  • Gauge Connection Location Inline
  • Differential Pressure Range Units in wc
  • Differential Pressure Range Value 0 to 50
  • Gauge Accuracy +/-2.00%
  • Body Material Aluminum
  • Gauge Primary Range Smallest Graduation 4
  • Diaphragm Material Buna-N
  • Piston Material PTFE
  • Seal Material Buna-N, Viton or EPDM
  • Gauge Operating Temp. Range 0 Degrees to 170 Degrees F
  • Rated Total Pressure 1500 psi
  • Dial Material Stainless Steel
  • Standards Class 1, Groups B, C, D, Class 2 Groups E, F, G, Class 3, NEMA 7, 9 and IP 66
  • Scale Type Pressure
  • Includes Instructions
  • Manufacturers Warranty Length 5 yr

Manufacturer Details

  • Manufacturer: Ashcroft
  • Condensed Mfg Number: 351132FD25SXCYLM50IWD
  • MPN: 351132FD25SXCYLM50IWD

Label Details

  • Hazardous Material: N
  • Green Material Flag: N
  • Country of Origin: IN
  • CA Prop 65 Wht Label: N

Classification Details

  • Harmonization Code: 9026204000
  • GDS Category Name: Dial Differential Pressure Gauges
  • GDS Family Name: Pressure and Vacuum Measuring
  • GDS Segment Name: Test Instruments
  • UNSPSC: 41112403
  • UNSPSC Class ID: 24
  • UNSPSC Commodity Name: Pressure measuring and control instruments
  • UNSPSC Commodity ID: 03
  • UNSPSC Commodity Name: Pressure indicators
  • UNSPSC Family ID: 11
  • UNSPSC Family Name: Measuring and observing and testing instruments
  • UNSPSC Segment ID: 41
  • UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment

Shipping Details

  • Not For Sale In: HI AK PR
