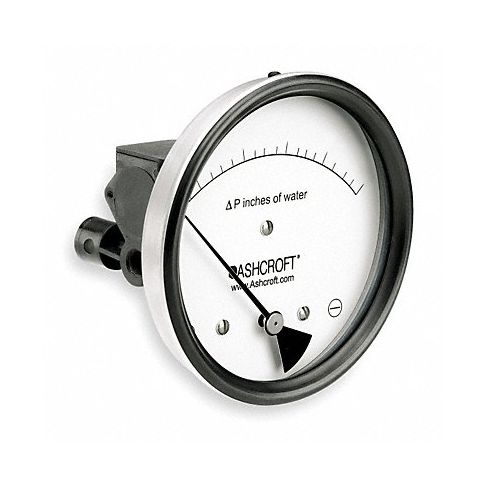

H8424 Pressure Gauge 0 to 30 In H2O MPN:451134EDRQMXCYLM30IWD

Gauge is ideal for use where ambient corrosion is a concern. Designed with stainless steel case and ring that offers excellent resistance to chemical, weather, and corrosion attack. Features 4-1/2” dial for differential low-pressure applications.

Technical Specifications

• Differential Pressure Gauge Type Differential Pressure Gauge
• Item Differential Pressure Gauge
• Gauge Nominal Dial Size 5 in
• Basic Gauge Case Material Plastic
• Basic Gauge Wetted Parts PTFE / Buna-N
• Differential Gauge Connection Type FNPT
• Differential Gauge Connection Size 1/8 in
• Gauge Connection Location Back and Side
• Differential Pressure Range Units in wc
• Differential Pressure Range Value 0 to 30
• Gauge Accuracy +/-3.00%
• Body Material Glass Filled Nylon
• Gauge Primary Range Smallest Graduation 0.6
• Diaphragm Material Buna-N
• Piston Material PTFE
• Seal Material Buna-N
• Gauge Operating Temp. Range 0 Degrees to 140 Degrees F
• Rated Total Pressure 35 psi
• Dial Material Stainless Steel
• Scale Type Pressure
• Includes Instructions
• Manufacturers Warranty Length 5 yr

Manufacturer Details

• Manufacturer: Ashcroft
• Condensed Mfg Number: 451134EDRQMXCYLM30IWD
• MPN: 451134EDRQMXCYLM30IWD

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: IN
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 9026204000
• GDS Category Name: Dial Differential Pressure Gauges
• GDS Family Name: Pressure and Vacuum Measuring
• GDS Segment Name: Test Instruments
• UNSPSC: 41112403
• UNSPSC Class ID: 24
• UNSPSC Commodity Name: Pressure measuring and control instruments
• UNSPSC Commodity ID: 03
• UNSPSC Commodity Name: Pressure indicators
• UNSPSC Family ID: 11
• UNSPSC Family Name: Measuring and observing and testing instruments
• UNSPSC Segment ID: 41
• UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment

Shipping Details

• Not For Sale In: HI AK PR
