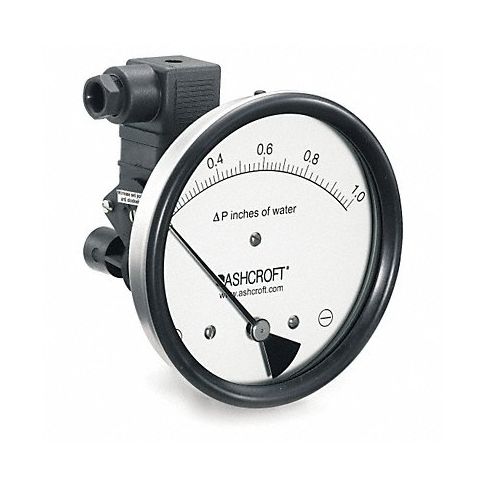

H8425 Pressure Gauge 0 to 1 In H2O MPN:451134EDRQMXV5CYLM1IWD
Free Shipping
In Stock
The H8425 pressure gauge, a precision tool for measuring pressure from 0 to 1 inches of water column within a differential pressure range, is ideal for use in the field of industrial manufacturing and process control. This reliable gauge utilizes a high-quality diaphragm which maintains stability during operation while offering long term accuracy even under extreme conditions such as vibrations or temperature variations. The dial's black numbers against a white background make it easy to read quickly and easily interpret changes in pressure thus saving crucial time during monitoring activities. Moreover, its portable design makes moving this gauge between different equipment a simple task hence boosting productivity even when transitioning from one location to another in larger plants. This tool would prove beneficial in ensuring efficient functioning of machines or keeping safety standards within acceptable limits by providing consistent data regarding pressure levels present at any given point in a system.
Technical Specifications
- Differential Pressure Gauge Type Differential Pressure Gauge
- Item Differential Pressure Gauge
- Gauge Nominal Dial Size 5 in
- Basic Gauge Case Material Plastic
- Basic Gauge Wetted Parts PTFE / Buna-N
- Differential Gauge Connection Type FNPT
- Differential Gauge Connection Size 1/8 in
- Gauge Connection Location Back and Side
- Differential Pressure Range Units in wc
- Differential Pressure Range Value 0 to 1
- Gauge Accuracy +/-3.00%
- Body Material Glass Filled Nylon
- Gauge Primary Range Smallest Graduation 0.02
- Diaphragm Material Buna-N
- Piston Material PTFE
- Seal Material Buna-N
- Gauge Operating Temp. Range 0 Degrees to 140 Degrees F
- Rated Total Pressure 35 psi
- Relay Type SPDT
- Contact Rating 0.25A @ 175V AC/V DC
- Dial Material Stainless Steel
- Scale Type Pressure
- Includes Instructions
- Manufacturers Warranty Length 5 yr
Manufacturer Details
- Manufacturer: Ashcroft
- Condensed Mfg Number: 451134EDRQMXV5CYLM1IWD
- MPN: 451134EDRQMXV5CYLM1IWD
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: IN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 9026204000
- GDS Category Name: Dial Differential Pressure Gauges
- GDS Family Name: Pressure and Vacuum Measuring
- GDS Segment Name: Test Instruments
- UNSPSC: 41112403
- UNSPSC Class ID: 24
- UNSPSC Commodity Name: Pressure measuring and control instruments
- UNSPSC Commodity ID: 03
- UNSPSC Commodity Name: Pressure indicators
- UNSPSC Family ID: 11
- UNSPSC Family Name: Measuring and observing and testing instruments
- UNSPSC Segment ID: 41
- UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment
Shipping Details
- Not For Sale In: HI AK PR
