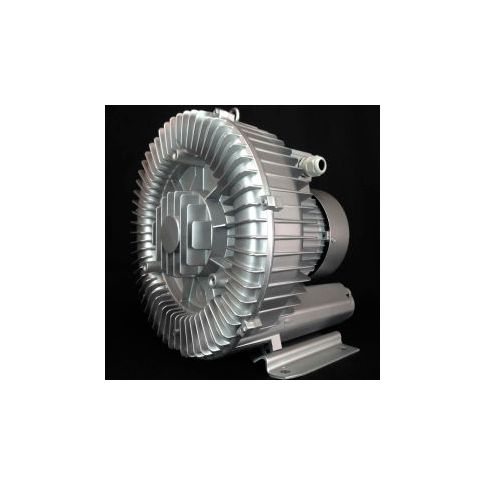

Atlantic Blowers Regenerative Blower AB-700 3 Phase 1 Stage 6 HP AB-700
Atlantic Blowers Regenerative Blower AB-700 3 Phase 1 Stage 6 HP AB-700
Atlantic Blowers Regenerative Blower AB-700, 3 Phase, 1 Stage, 6 HP
Features
Features
- Oil-Free Air - supply clean oil-free air without any contaminants unlike traditional compressors, vacuum pumps and blowers
- Energy Efficient - compressors, vacuum pumps and traditional blowers typically waste energy by requiring higher pressures and flows to achieve the same results as our blowers due
- Virtually Maintenance Free - fewer moving parts reduce wear and tear and allow for our blowers to last longer than typical vacuum pumps and compressors
- Low Acoustical Noise Levels - run quieter (between 51-81 db's) compared to compressors, vacuum pumps and traditional blowers
- Rugged Industrial Duty - our regenerative and centrifugal blowers are made to run 24/7 and are built to last
- Compact - the size of our units are much more compact than compressors, vacuum pumps and traditional blowers
- Lightweight & Corrosion Resistant - impellers, housings and mounting bases are made of cast aluminum alloy for reduced weight, maximum strength and corrosion resistance
- 50 / 60 HZ Motors are standard offering a wide voltage range
- Blowers are made of Cast Aluminum Alloy for reduced weight, maximum strength and corrosion resistance
- Built in Thermal Protectors for overload protection are standard
- Double Shielded Stainless Steel Sealed Bearings are standard
- High Quality Shaft Oil Seals are standard between the impeller & bearings for protection against air contamination
- Anodizing for corrosion resistance is available
- Retrofit Bases & Flanges are available to match differing dimensional requirements
- Motor Shaft-Mounted Impeller or Direct Drive Technology eliminates the need or use of belts, couplings and gears.
- Tighter Tolerances between the impellers and housings increase flow and pressure efficiency
Product Specifications
- BRANDAtlantic Blowers
- CONSTRUCTIONCast Aluminum
- VOLTAGE220 / 275 / 380 / 480
- PHASE3
- HORSEPOWER6
- TYPERegenerative Blower
- MANUFACTURERS PART NUMBERAB-700
- STAGES1
- DECIBELS72
- MAX PRESSURE INCH H20134
- CONNECTION TYPENPT
- MAX AIR FLOW CFM230
- NPT CONNECTION SIZE INCHES2
Additional Information
- UNSPSC: 27112701
- Brand: Atlantic Blowers Llc
- Package Quantity: 1
- Country of Origin: TW
- FOB Origin: TX
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: No
- Package Length: 18.00
- Package Width: 18.00
- Package Height: 18.00
- Package Weight: 90.00
Product info last updated on November 7, 2024 11:51am UTC
Category: Blowers
