BI-TORQ 3/4" 3-Pc SS NPT Ball Valve W/Spring Ret. Pneum. Actuator IS-3PT-07-52-SR
BI-TORQ 3/4"" 3-Pc SS NPT Ball Valve W/Spring Ret. Pneum. Actuator IS-3PT-07-52-SR
3/4" 3-Pc SS NPT Ball Valve W/Spring Ret. Pneum. Actuator

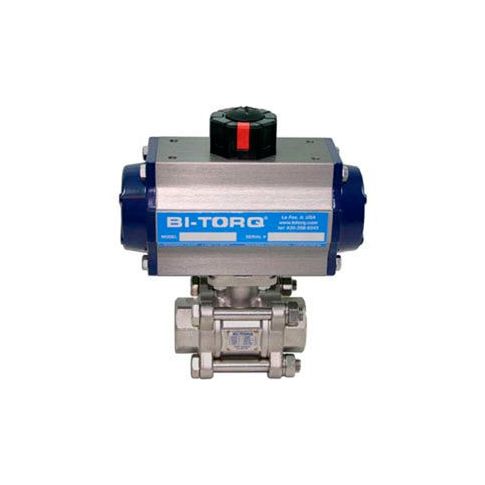

The BI-TORQ IS-3PT-07-52-SR is a pneumatically-actuated 3/4" full port SS ball valve with NPT (threaded) ends. The valve has a pressure rating to 1000 PSI and a temperature rating from 0°F to +450°F. RTFE seats and TFE seals are compatible with a wide range of industries and media type. The 3-piece design allows for easy maintenance without removing the end pieces from the pipeline. This version comes complete with a PN-52-SR spring return (air to open, spring to close) anodized aluminum pneumatic actuator sized for 80PSI air supply.
The BI-TORQ IS-3PT-07-52-SR is a pneumatically-actuated 3/4" full port SS ball valve with NPT (threaded) ends. The valve has a pressure rating to 1000 PSI and a temperature rating from 0°F to +450°F. RTFE seats and TFE seals are compatible with a wide range of industries and media type. The 3-piece design allows for easy maintenance without removing the end pieces from the pipeline. This version comes complete with a PN-52-SR spring return (air to open, spring to close) anodized aluminum pneumatic actuator sized for 80PSI air supply.
Product Specifications
- LENGTH INCHES6-7/8
- WIDTH INCHES4.25
- HEIGHT INCHES8-13/32
- BRANDBi-Torq
- PACKAGE QUANTITY1
- TYPE OF ACTUATIONSpring-Return
- MANUFACTURER PART NUMBERIS-3PT-07-52-SR
- END CONNECTIONSNPT
- CONSTRUCTIONValve: 316SS; Actuator: Anodized Aluminum
- VALVE TYPEBall
- # OF PORTS3-Way
- ACTUATORPneumatic
- ACTUATED OR MANUALActuated
- VALVE SIZE3/4"
- BODY MATERIALSS
Additional Information
- UNSPSC: 40141607
- Brand: Avk Carbo-Bond/Bitorq Valve Automation
- Package Quantity: 1
- Country of Origin: TW
- FOB Origin: IL
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: No
- Package Weight: 4.40
Product info last updated on November 27, 2024 10:25pm UTC
Category: Valves
