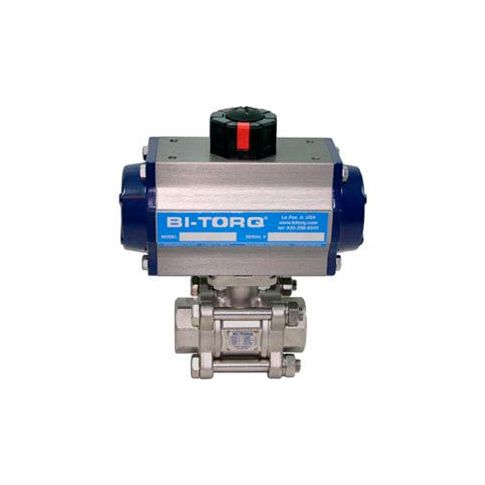

BI-TORQ 2" 3-Pc SS NPT Ball Valve W/Dbl. Acting Pneum. Actuator IS-3PT-20-63-DA
BI-TORQ 2"" 3-Pc SS NPT Ball Valve W/Dbl. Acting Pneum. Actuator IS-3PT-20-63-DA
2" 3-Pc SS NPT Ball Valve W/Dbl. Acting Pneum. Actuator
The BI-TORQ IS-3PT-20-63-DA is a pneumatically-actuated 2" full port SS ball valve with NPT (threaded) ends. The valve has a pressure rating to 1000 PSI and a temperature rating from 0°F to +450°F. RTFE seats and TFE seals are compatible with a wide range of industries and media type. The 3-piece design allows for easy maintenance without removing the end pieces from the pipeline. This version comes complete with a PN-63-DA double acting (air to open, air to close) anodized aluminum pneumatic actuator sized for 80PSI air supply.
The BI-TORQ IS-3PT-20-63-DA is a pneumatically-actuated 2" full port SS ball valve with NPT (threaded) ends. The valve has a pressure rating to 1000 PSI and a temperature rating from 0°F to +450°F. RTFE seats and TFE seals are compatible with a wide range of industries and media type. The 3-piece design allows for easy maintenance without removing the end pieces from the pipeline. This version comes complete with a PN-63-DA double acting (air to open, air to close) anodized aluminum pneumatic actuator sized for 80PSI air supply.
Product Specifications
- LENGTH INCHES7
- WIDTH INCHES7
- HEIGHT INCHES12-31/32
- BRANDBi-Torq
- PACKAGE QUANTITY1
- TYPE OF ACTUATIONDouble-Acting
- MANUFACTURER PART NUMBERIS-3PT-20-63-DA
- END CONNECTIONSNPT
- CONSTRUCTIONValve: 316SS; Actuator: Anodized Aluminum
- VALVE TYPEBall
- # OF PORTS3-Way
- ACTUATORPneumatic
- ACTUATED OR MANUALActuated
- VALVE SIZE2"
- BODY MATERIALSS
Additional Information
- UNSPSC: 40141607
- Brand: Avk Carbo-Bond/Bitorq Valve Automation
- Package Quantity: 1
- Country of Origin: TW
- FOB Origin: IL
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: No
- Package Weight: 13.30
Product info last updated on May 9, 2024 2:52pm UTC
Category: Valves
