BI-TORQ 1" 2-Way CPVC Ball Valve W/Spring Ret. Pneum. Actuator IV-3PS-10-52-SR
BI-TORQ 1"" 2-Way CPVC Ball Valve W/Spring Ret. Pneum. Actuator IV-3PS-10-52-SR

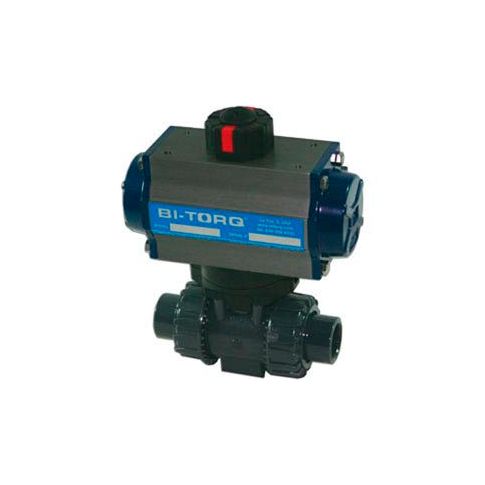

1" 2-Way CPVC Ball Valve W/Spring Ret. Pneum. Actuator
The BI-TORQ IV-3PS-10-52-SR series 1" ball valve comes complete with both threaded and socket end options. This version features a full port, true union CPVC ball valve with TFE seats and EPDM seals. (Options for both BUNA and Viton seals are available for media compatibility.) The valve has a pressure rating to 235 PSI at a temperature rating of +73°F. The CPVC body is suitable for chemical, industrial, irrigation, or pool and spa applications .This version comes complete with a PN-52-SR spring return (air-to-open, spring to fail close) pneumatic actuator sized for 80PSI air supply.
The BI-TORQ IV-3PS-10-52-SR series 1" ball valve comes complete with both threaded and socket end options. This version features a full port, true union CPVC ball valve with TFE seats and EPDM seals. (Options for both BUNA and Viton seals are available for media compatibility.) The valve has a pressure rating to 235 PSI at a temperature rating of +73°F. The CPVC body is suitable for chemical, industrial, irrigation, or pool and spa applications .This version comes complete with a PN-52-SR spring return (air-to-open, spring to fail close) pneumatic actuator sized for 80PSI air supply.
Product Specifications
- LENGTH INCHES6-3/8
- WIDTH INCHES3.17
- HEIGHT INCHES6-43/64
- BRANDBi-Torq
- PACKAGE QUANTITY1
- TYPE OF ACTUATIONSpring-Return
- DIAMETER INCHES2
- MANUFACTURER PART NUMBERIV-3PS-10-52-SR
- END CONNECTIONSSocket
- CONSTRUCTIONPVC, Aluminum
- VALVE TYPEBall
- # OF PORTS2-Way
- ACTUATORPneumatic
- ACTUATED OR MANUALActuated
- VALVE SIZE1"
- BODY MATERIALCPVC
Additional Information
- UNSPSC: 40141607
- Brand: Avk Carbo-Bond/Bitorq Valve Automation
- Package Quantity: 1
- Country of Origin: IT
- FOB Origin: IL
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: No
- Package Weight: 4.89
Product info last updated on May 9, 2024 5:36pm UTC
Category: Valves
