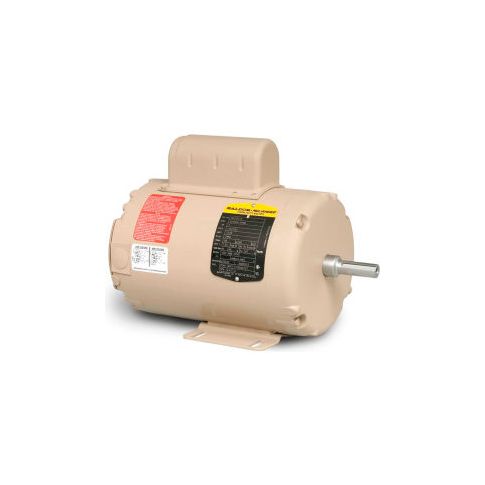

Baldor-Reliance Motor AFL3522A 1.5HP 3450RPM 1PH 60HZ 143TZ 3528L TEAO AFL3522A
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
281-8553B38
Baldor-Reliance Motor AFL3522A 1.5HP 3450RPM 1PH 60HZ 143TZ 3528L TEAO AFL3522A
Baldor-Reliance Motor, 1.5HP,3450RPM,1PH,60HZ,143TZ,3528L,TEAO
Features:
Designed for powering aeration fans used on farm grain storage, exhaust fans, air handling systems, etc.
Features:
- Lubrication fittings on Nema T frames for eazy on-site maintenance
- Ball bearings
- Corrosion protected with epoxy finish
- Normally-closed thermostats on three phase motors
Designed for powering aeration fans used on farm grain storage, exhaust fans, air handling systems, etc.
Product Specifications
- HORSEPOWER1 1/2
- ENCLOSURETEAO
- FRAME143TZ
- BRANDBaldor-Reliance
- MOUNTINGRigid
- MOTOR RPM 60Hz3450
- RPM3450
- PHASE1
- VOLTAGE115/230
- HERTZ60
- SERVICE FACTOR1
- AMBIENT TEMP C40
- ENCLOSURE TYPETotally Enclosed
- WEIGHT43
- RPM RANGE3001-3600
- 208V AMPS8.6
- KVA-CODEH
- is_motorYes
- POWER-FACTOR82
- FL EFFICIENCY70
- SERIAL-NUMBER--
- SPEC. NUMBER35T889-0525
- BEARING-DRIVE-END6205
- DESIGN CODEL
- OPPOSITE END BEARING SIZE6203
- DOE-CODE--
- FL AMPS16.6/8.3
- MANUFACTURER PART #AFL3522A
- DRIVE END FLANGEStandard
- C-DIMENSION INCHES12.74
- POLES2
- INSULATION CLASSB
Additional Information
- UPC: 781568121313
- UNSPSC: 26101114
- Brand: Baldor Electric Co.
- Package Quantity: 1
- Country of Origin: US
- FOB Origin: AR
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: No
- Package Weight: 43.00
Product info last updated on August 26, 2024 2:21pm UTC
Category: Definite Purpose Electric Motors
