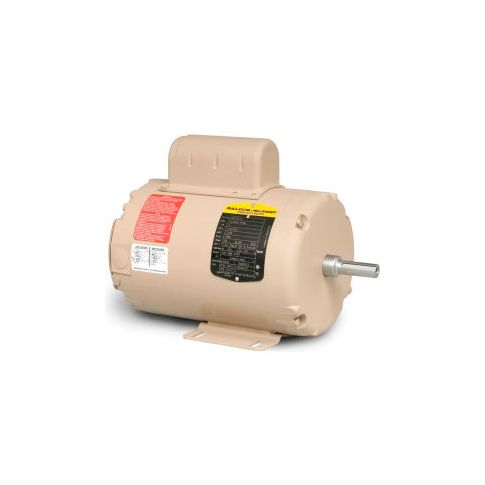

Baldor-Reliance Motor AFL3523A 2HP 3450RPM 1PH 60HZ 143TZ 3535L TEAO F1 AFL3523A

Discount: See in Cart
Free Shipping
In Stock
Brand: Baldor Electric
Part #: AFL3523A
UPC: 00781568121320
SKU
281-8554B38
$1,061.79
Baldor-Reliance Motor AFL3523A 2HP 3450RPM 1PH 60HZ 143TZ 3535L TEAO F1 AFL3523A
Baldor-Reliance Motor, 2HP,3450RPM,1PH,60HZ,143TZ,3535L,TEAO,F1

Features:
  • Lubrication fittings on Nema T frames for eazy on-site maintenance
  • Ball bearings
  • Corrosion protected with epoxy finish
  • Normally-closed thermostats on three phase motors
Typical Applications:
Designed for powering aeration fans used on farm grain storage, exhaust fans, air handling systems, etc.

Product Specifications

  • HORSEPOWER2
  • ENCLOSURETEAO
  • FRAME143TZ
  • BRANDBaldor-Reliance
  • MOUNTINGRigid
  • MOTOR RPM 60Hz3450
  • RPM3450
  • PHASE1
  • VOLTAGE115/230
  • HERTZ60
  • SERVICE FACTOR1
  • AMBIENT TEMP C40
  • ENCLOSURE TYPETotally Enclosed
  • WEIGHT50
  • RPM RANGE3001-3600
  • 208V AMPS--
  • KVA-CODEK
  • is_motorYes
  • POWER-FACTOR82
  • FL EFFICIENCY74
  • SERIAL-NUMBER--
  • SPEC. NUMBER35T889-5184
  • BEARING-DRIVE-END6205
  • DESIGN CODEL
  • OPPOSITE END BEARING SIZE6203
  • DOE-CODE--
  • FL AMPS23/11.5
  • MANUFACTURER PART #AFL3523A
  • DRIVE END FLANGEStandard
  • C-DIMENSION INCHES13.61
  • POLES2
  • INSULATION CLASSB


Additional Information
  • UPC: 781568121320
  • UNSPSC: 26101114
  • Brand: Baldor Electric Co.
  • Package Quantity: 1
  • Country of Origin: US
  • FOB Origin: AR
  • Ships by: PARCEL
  • Comes in a kit: No
  • Newly added to catalog: No
  • Item is on Clearance: No
  • Contains Hazardous Materials: No
  • CA Proposition 65 Applies: No
  • Package Weight: 50.00
