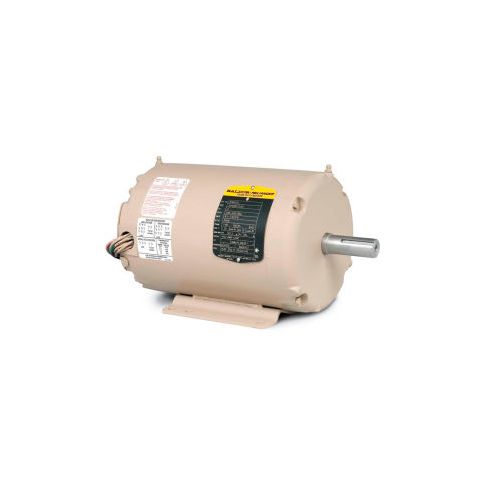

Baldor-Reliance Motor AFM3528 .75HP 3450RPM 3PH 60HZ 56Z 3413M TEAO F1 AFM3528
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
281-8579B38
Baldor-Reliance Motor AFM3528 .75HP 3450RPM 3PH 60HZ 56Z 3413M TEAO F1 AFM3528
Baldor-Reliance Motor, .75HP,3450RPM,3PH,60HZ,56Z,3413M,TEAO,F1
Features:
Designed for powering aeration fans used on farm grain storage, exhaust fans, air handling systems, etc.
Features:
- Lubrication fittings on Nema T frames for eazy on-site maintenance
- Ball bearings
- Corrosion protected with epoxy finish
- Normally-closed thermostats on three phase motors
Designed for powering aeration fans used on farm grain storage, exhaust fans, air handling systems, etc.
Product Specifications
- HORSEPOWER3/4
- ENCLOSURETEAO
- FRAME56Z
- BRANDBaldor-Reliance
- MOUNTINGRigid
- MOTOR RPM 60Hz3450
- RPM3450
- PHASE3
- VOLTAGE230/460
- HERTZ60
- SERVICE FACTOR1.25
- AMBIENT TEMP C40
- ENCLOSURE TYPETotally Enclosed
- WEIGHT21
- RPM RANGE3001-3600
- 208V AMPS3.1
- is_motorYes
- KVA-CODEK
- POWER-FACTOR73
- FL EFFICIENCY74
- SERIAL-NUMBER--
- SPEC. NUMBER34K62-255
- BEARING-DRIVE-END6203
- DESIGN CODEB
- OPPOSITE END BEARING SIZE6203
- DOE-CODE--
- FL AMPS2.6/1.3
- MANUFACTURER PART #AFM3528
- DRIVE END FLANGEStandard
- C-DIMENSION INCHES10.97
- POLES2
- INSULATION CLASSB
Additional Information
- UPC: 781568121344
- UNSPSC: 26101114
- Brand: Baldor Electric Co.
- Package Quantity: 1
- Country of Origin: US
- FOB Origin: AR
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: No
- Package Weight: 21.00
Product info last updated on August 26, 2024 2:21pm UTC
Category: Definite Purpose Electric Motors
