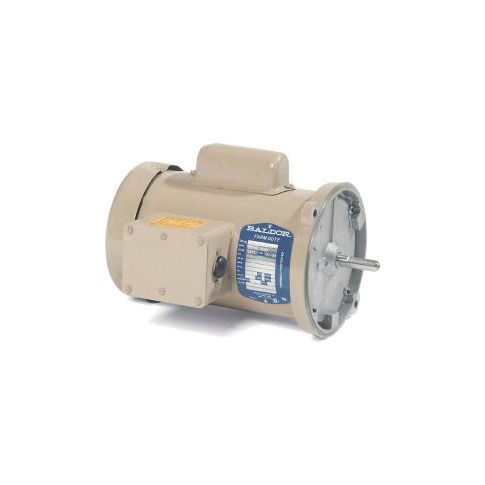

Baldor-Reliance Motor ANFL3501M .33HP 1725RPM 1PH 60HZ 48YZ 3414L TEFC F ANFL3501M
Baldor-Reliance Motor, .33HP,1725RPM,1PH,60HZ,48YZ,3414L,TEFC,F
Features:
Poultry feed auger drive systems.
Features:
- Mechanical protection of centrifugal switch to prevent damage to motor in case of overspeed
- Manual reset thermal protection mounted in oversize conduit box
- Farm Duty epoxy paint and thermal cover protect motor from harsh environments
- Extended shaft (fan end) with wrench flats for manual jogging of auger. NEMA 56N flange connects to the drive/gear box assembly
Poultry feed auger drive systems.
Product Specifications
- HORSEPOWER1/3
- ENCLOSURETEFC
- FRAME48YZ
- BRANDBaldor-Reliance
- MOUNTINGNo Mounting
- MOTOR RPM 60Hz1725
- RPM1725
- PHASE1
- VOLTAGE115/230
- HERTZ60
- SERVICE FACTOR1.35
- AMBIENT TEMP C40
- ENCLOSURE TYPETotally Enclosed
- WEIGHT24
- RPM RANGE1701-1800
- 208V AMPS3.6
- is_motorYes
- KVA-CODEL
- POWER-FACTOR60
- FL EFFICIENCY60
- SERIAL-NUMBER--
- SPEC. NUMBER34H317-5598
- BEARING-DRIVE-END6203
- DESIGN CODEN
- OPPOSITE END BEARING SIZE6203
- DOE-CODE--
- FL AMPS6/3
- MANUFACTURER PART #ANFL3501M
- DRIVE END FLANGEOIL BURNER FLANGE
- C-DIMENSION INCHES12.44
- POLES4
- INSULATION CLASSB
Additional Information
- UPC: 781568122037
- UNSPSC: 26101114
- Brand: Baldor Electric Co.
- Package Quantity: 1
- Country of Origin: US
- FOB Origin: AR
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: No
- Package Weight: 24.00
