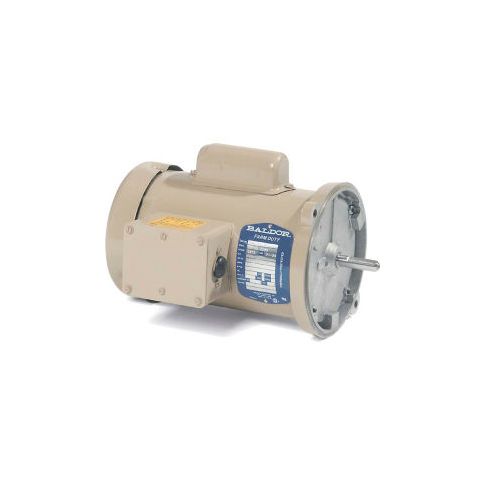

Baldor-Reliance Electric Motors ANFL3510M 1HP 1725RPM 1PH 60HZ 56YZ 3524L TEFC F1 ANFL3510M
Baldor-Reliance Motor, 1HP,1725RPM,1PH,60HZ,56YZ,3524L,TEFC,F1
Features:
Poultry feed auger drive systems.
Features:
- Mechanical protection of centrifugal switch to prevent damage to motor in case of overspeed
- Manual reset thermal protection mounted in oversize conduit box
- Farm Duty epoxy paint and thermal cover protect motor from harsh environments
- Extended shaft (fan end) with wrench flats for manual jogging of auger. NEMA 56N flange connects to the drive/gear box assembly
Poultry feed auger drive systems.
Product Specifications
- HORSEPOWER1
- ENCLOSURETEFC
- FRAME56YZ
- BRANDBaldor-Reliance
- MOUNTINGNo Mounting
- MOTOR RPM 60Hz1725
- RPM1725
- PHASE1
- VOLTAGE115/230
- HERTZ60
- SERVICE FACTOR1.15
- AMBIENT TEMP C40
- ENCLOSURE TYPETotally Enclosed
- WEIGHT41
- RPM RANGE1701-1800
- 208V AMPS6.8
- is_motorYes
- KVA-CODEK
- POWER-FACTOR73
- FL EFFICIENCY67
- SERIAL-NUMBER--
- SPEC. NUMBER35Q142Y842
- BEARING-DRIVE-END6203
- DESIGN CODEL
- OPPOSITE END BEARING SIZE6203
- DOE-CODE--
- FL AMPS13/6.5
- MANUFACTURER PART #ANFL3510M
- DRIVE END FLANGEOIL BURNER FLANGE
- C-DIMENSION INCHES13.55
- POLES4
- INSULATION CLASSB
