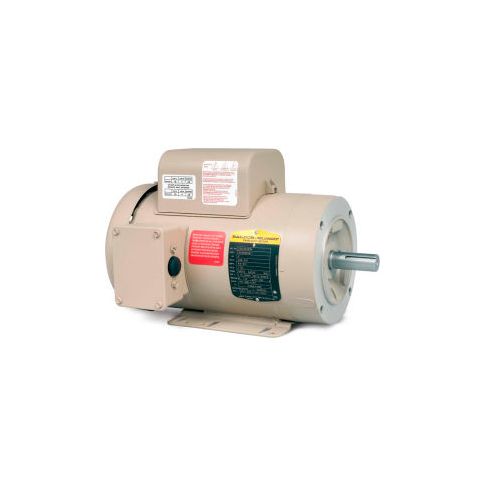

Baldor-Reliance Motor CFDL3516TM 2HP 1725RPM 1PH 60HZ 56CHZ 3535LC TEFC F CFDL3516TM
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
281-8547B38
Baldor-Reliance Motor CFDL3516TM 2HP 1725RPM 1PH 60HZ 56CHZ 3535LC TEFC F CFDL3516TM
Baldor-Reliance Motor, 2HP,1725RPM,1PH,60HZ,56CHZ,3535LC,TEFC,F
Features:
Wide variety of agri-duty and industrial applications.
Features:
- Ball bearings, lubricated with high temperature moisture-resistant grease
- Condensation drains
- Gasketed cast conduit boxed
- Farm duty epoxy paint for protection from harsh environments
- 1.00 Service Factor
Wide variety of agri-duty and industrial applications.
Product Specifications
- HORSEPOWER2
- ENCLOSURETEFC
- FRAME56CHZ
- BRANDBaldor-Reliance
- MOUNTINGRigid
- MOTOR RPM 60Hz1725
- RPM1725
- PHASE1
- VOLTAGE208-230
- HERTZ60
- SERVICE FACTOR1.15
- AMBIENT TEMP C40
- ENCLOSURE TYPETotally Enclosed
- WEIGHT53
- RPM RANGE1701-1800
- 208V AMPS--
- is_motorYes
- KVA-CODEJ
- POWER-FACTOR99
- FL EFFICIENCY78
- SERIAL-NUMBER--
- SPEC. NUMBER35L869S247
- BEARING-DRIVE-END6205
- DESIGN CODEL
- OPPOSITE END BEARING SIZE6203
- DOE-CODE--
- FL AMPS8.6-8.3
- MANUFACTURER PART #CFDL3516TM
- DRIVE END FLANGEC-Face
- C-DIMENSION INCHES14.19
- POLES4
- INSULATION CLASSF
Additional Information
- UPC: 781568134498
- UNSPSC: 26101114
- Brand: Baldor Electric Co.
- Package Quantity: 1
- Country of Origin: US
- FOB Origin: AR
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: No
- Package Weight: 53.00
Product info last updated on August 26, 2024 2:21pm UTC
Category: Definite Purpose Electric Motors
