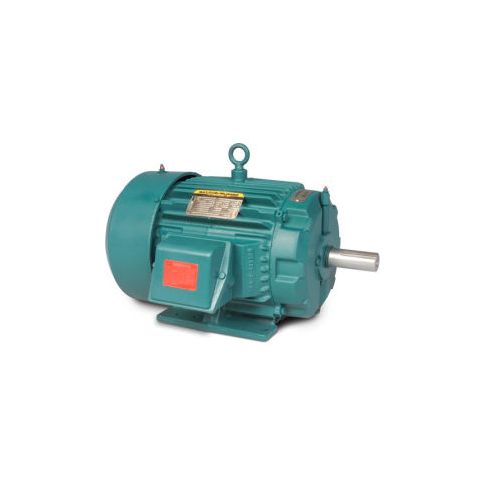

Baldor-Reliance Motor ECP3581T-4 1HP 1765RPM 3PH 60HZ 143T 0524M TEFC F1 ECP3581T-4

Baldor-Reliance Motor, 1HP,1765RPM,3PH,60HZ,143T,0524M,TEFC,F1

Features:

• Heavy gauge steel and cast iron frames
• Ball bearings
• ISR® (Inverter Spike Resistant®) copper windings
• Low-loss electrical grade lamination steel
• Three year warranty

Typical Applications:
Typical applications include operations where continuous or frequent duty is required. Super-E Motors are designed to conserve energy over extended time periods. Class F insulated, 1.15 service factor. Inverter rated per NEMA MG1 Part 31.4.4.2. Suitable for variable torque applications and constant torque speed range with properly sized and adjusted variable frequency drives.
