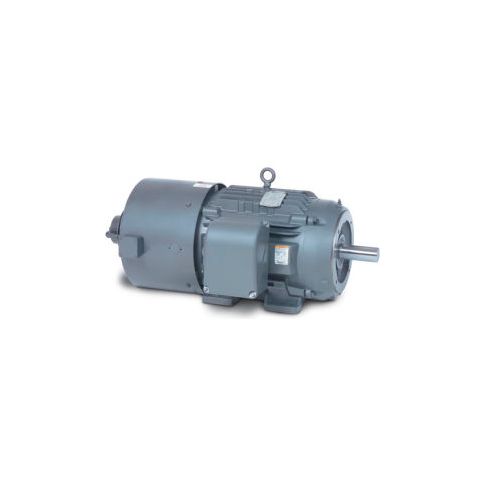

Baldor-Reliance Motor IDNM3584T 1.5HP 1755RPM 3PH 60HZ 145TC 0524M TENV IDNM3584T
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
281-8999B38
Baldor-Reliance Motor IDNM3584T 1.5HP 1755RPM 3PH 60HZ 145TC 0524M TENV IDNM3584T
Baldor-Reliance Motor, 1.5HP,1755RPM,3PH,60HZ,145TC,0524M,TENV
Features:
Conveyors, pumps, fans, metal processing, compressors, test stands, and material handling equipment. Designed for inverter or vector applications where up to a 1000:1 constant torque speed range is required.
Features:
- Motors include provisions for encoder feedback mounting when used with closed loop velocity or position motor controls
- Meets NEMA MG 1, Part 31
Conveyors, pumps, fans, metal processing, compressors, test stands, and material handling equipment. Designed for inverter or vector applications where up to a 1000:1 constant torque speed range is required.
Product Specifications
- HORSEPOWER1 1/2
- ENCLOSURETENV
- FRAME145TC
- BRANDBaldor-Reliance
- MOUNTINGRigid
- MOTOR RPM 60Hz1755
- RPM1755
- PHASE3
- VOLTAGE230/460
- HERTZ60
- SERVICE FACTOR1
- AMBIENT TEMP C40
- ENCLOSURE TYPETotally Enclosed
- OPPOSITE END BEARING6203
- WEIGHT57
- RPM RANGE1701-1800
- ROTOR-INERTIA0.142
- SLIP-HERTZ1.5
- is_motorYes
- FL EFFICIENCY84
- SERIAL-NUMBER--
- SPEC. NUMBER05E534X023G1
- BLOWER-PHASE--
- BLOWER-AMPS--
- BLOWER-HERTZ--
- BEARING-DRIVE-END6205
- DESIGN CODEB
- BALDOR CATALOG NUMBERIDNM3584T
- DOE-CODE--
- FL AMPS4.6/2.3
- BLOWER-VOLTS--
- MAGNETIZING-CURRENT3/1.5
- MAXIMUM-RPM6000
- DRIVE END FLANGEC-Face
- C-DIMENSION INCHES14.65
- POLES4
- INSULATION CLASSH
Additional Information
- UPC: 781568144787
- UNSPSC: 26101106
- Brand: Baldor Electric Co.
- Package Quantity: 1
- Country of Origin: US
- FOB Origin: AR
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: No
- Package Weight: 57.00
Product info last updated on March 1, 2024 8:34pm UTC
Category: Definite Purpose Electric Motors
