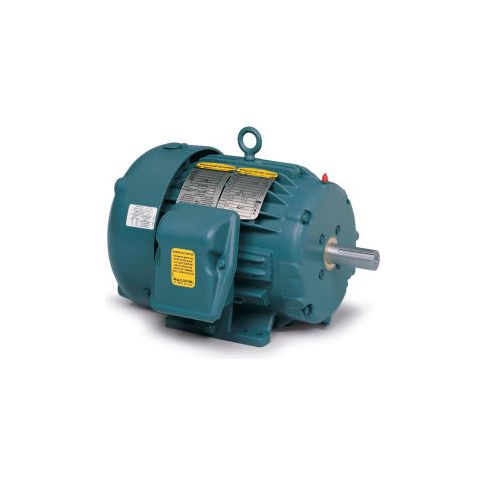

Baldor-Reliance Severe Duty Motor ECP83582T-4 3 PH 1 HP 460 V 1160 RPM TEFC 145T Frame ECP83582T-4
Baldor-Reliance Severe Duty Motor, ECP83582T-4, 3 PH, 1 HP, 460 V, 1160 RPM, TEFC, 145T Frame
Severe Duty motors are available from 1 HP to 700 HP. These products are especially designed for those applications requiring protection of the motors from severe environmental operating conditions. A few typical applications which might require these types of motors include petro-chemical plants, mines, foundries, pulp and paper plants, waste management facilities, rock crushers, and chemical plants.
Features
Severe Duty motors are available from 1 HP to 700 HP. These products are especially designed for those applications requiring protection of the motors from severe environmental operating conditions. A few typical applications which might require these types of motors include petro-chemical plants, mines, foundries, pulp and paper plants, waste management facilities, rock crushers, and chemical plants.
Features
- Designed and manufactured and tested to exceed the IEEE 841-1994 standards for severe duty TEFC induction motors
- Premium efficiency copper windings using Baldor-Reliance ISR (Inverter Spike Resistant)® magnet wire comply with CEE efficiency guidelines
- Inpro Seal® on fan and drive end shaft extensions
- 2-part yellow epoxy oxide primer (inside & outside)
- Gray epoxy paint and corrosion resistant hardware
- Reduced noise, vibration and mechanical tolerances
- Final test and vibration results shipped with motor
- Typical applications include petro-chemical, pulp and paper plants, mines and other installations requiring premium efficient motors manufactured and tested to rigid standards for severe duty service.
Product Specifications
- HORSEPOWER1
- ENCLOSURETEFC
- FRAME145T
- BRANDBaldor-Reliance
- MOTOR RPM 60Hz1160
- RPM1160
- PHASE3
- VOLTAGE460
- HERTZ60
- SERVICE FACTOR1.15
- AMBIENT TEMP C40
- ENCLOSURE TYPETotally Enclosed
- OPPOSITE END BEARING6205
- DUTYContinuous
- RPM RANGE1101-1200
- EFFICIENCY-282.5
- KVA-CODEK
- is_motorYes
- POWER-FACTOR66
- FL EFFICIENCY80
- GREASEPOLYREX EM
- SPEC. NUMBER05E811X259G1
- BEARING-DRIVE-END6205
- DESIGN CODEB
- BALDOR CATALOG NUMBERECP83582T-4
- DOE-CODE010A
- FL AMPS1.7
- MANUFACTURER PART #ECP83582T-4
- TYPESevere Duty Motor
- C-DIMENSION INCHES12.88
- INSULATION CLASSF
