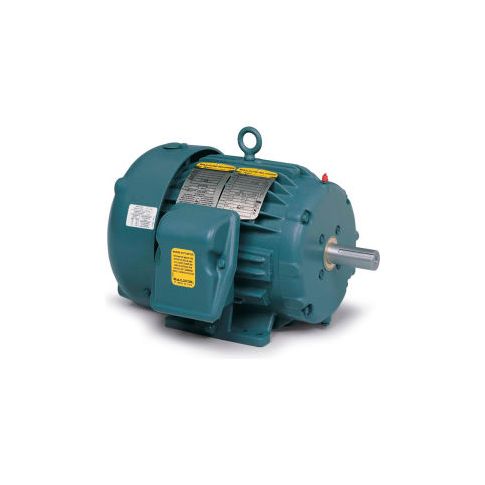

Baldor-Reliance Severe Duty Motor ECP83583T-4 3 PH 1.5 HP 460 V 3450 RPM TEFC 143T Frame ECP83583T-4
Baldor-Reliance Severe Duty Motor, ECP83583T-4, 3 PH, 1.5 HP, 460 V, 3450 RPM, TEFC, 143T Frame
Severe Duty motors are available from 1 HP to 700 HP. These products are especially designed for those applications requiring protection of the motors from severe environmental operating conditions. A few typical applications which might require these types of motors include petro-chemical plants, mines, foundries, pulp and paper plants, waste management facilities, rock crushers, and chemical plants.
Features
Severe Duty motors are available from 1 HP to 700 HP. These products are especially designed for those applications requiring protection of the motors from severe environmental operating conditions. A few typical applications which might require these types of motors include petro-chemical plants, mines, foundries, pulp and paper plants, waste management facilities, rock crushers, and chemical plants.
Features
- Designed and manufactured and tested to exceed the IEEE 841-1994 standards for severe duty TEFC induction motors
- Premium efficiency copper windings using Baldor-Reliance ISR (Inverter Spike Resistant)® magnet wire comply with CEE efficiency guidelines
- Inpro Seal® on fan and drive end shaft extensions
- 2-part yellow epoxy oxide primer (inside & outside)
- Gray epoxy paint and corrosion resistant hardware
- Reduced noise, vibration and mechanical tolerances
- Final test and vibration results shipped with motor
- Typical applications include petro-chemical, pulp and paper plants, mines and other installations requiring premium efficient motors manufactured and tested to rigid standards for severe duty service.
Product Specifications
- HORSEPOWER1 1/2
- ENCLOSURETEFC
- FRAME143T
- BRANDBaldor-Reliance
- MOTOR RPM 60Hz3450
- RPM3450
- PHASE3
- VOLTAGE460
- HERTZ60
- SERVICE FACTOR1.15
- AMBIENT TEMP C40
- ENCLOSURE TYPETotally Enclosed
- OPPOSITE END BEARING6205
- DUTYContinuous
- RPM RANGE3001-3600
- is_motorYes
- KVA-CODEM
- EFFICIENCY-285.5
- POWER-FACTOR83
- FL EFFICIENCY82.5
- GREASEPOLYREX EM
- SPEC. NUMBER05E811W176
- BEARING-DRIVE-END6205
- DESIGN CODEB
- BALDOR CATALOG NUMBERECP83583T-4
- DOE-CODE010A
- FL AMPS2
- MANUFACTURER PART #ECP83583T-4
- TYPESevere Duty Motor
- C-DIMENSION INCHES12.88
- INSULATION CLASSF
Additional Information
- UPC: 781568210734
- UNSPSC: 26101100
- Brand: Baldor Electric Co.
- Package Quantity: 1
- Country of Origin: US
- FOB Origin: AR
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: No
- Package Length: 17.00
- Package Width: 15.00
- Package Height: 13.00
- Package Weight: 58.00
