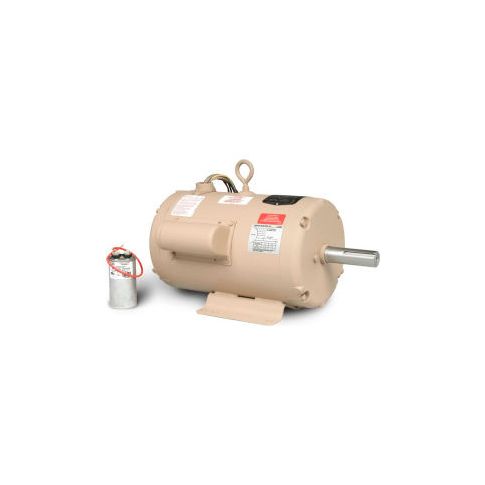

Baldor-Reliance Motor UCLE153 1.5-3HP 3450RPM 1PH 60HZ 145TZ 3532LC TE UCLE153
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
281-0827B39
Baldor-Reliance Motor UCLE153 1.5-3HP 3450RPM 1PH 60HZ 145TZ 3532LC TE UCLE153
Baldor-Reliance Motor, 1.5-3HP,3450RPM,1PH,60HZ,145TZ,3532LC,TE
Features:
Specifically engineered for use on vane axial fan crop dryers.
Features:
- Shaft 3/4 longer than NEMA standard
- Shaft keyed, drilled and tapped with internal 1/4-20 tap 1 deep
- 1.00 Service Factor
- Thermostats
- Epoxy paint
Specifically engineered for use on vane axial fan crop dryers.
Product Specifications
- HORSEPOWER1 1/2
- ENCLOSURETEAO
- FRAME145TZ
- BRANDBaldor-Reliance
- MOUNTINGRigid
- MOTOR RPM 60Hz3450
- RPM3450
- PHASE1
- VOLTAGE230
- HERTZ60
- SERVICE FACTOR1.15
- AMBIENT TEMP C40
- ENCLOSURE TYPETotally Enclosed
- WEIGHT52
- RPM RANGE3001-3600
- 208V AMPS13.7
- is_motorYes
- KVA-CODEG
- POWER-FACTOR95
- FL EFFICIENCY85.5
- SERIAL-NUMBER--
- SPEC. NUMBER35T928T138G1
- BEARING-DRIVE-END6206
- DESIGN CODEL
- OPPOSITE END BEARING SIZE6203
- DOE-CODE--
- FL AMPS12.5
- MANUFACTURER PART #UCLE153
- DRIVE END FLANGEStandard
- C-DIMENSION INCHES14.25
- POLES2
- INSULATION CLASSF
Additional Information
- UPC: 781568221969
- UNSPSC: 26101114
- Brand: Baldor Electric Co.
- Package Quantity: 1
- Country of Origin: US
- FOB Origin: AR
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: No
- Package Weight: 52.00
Product info last updated on August 26, 2024 2:21pm UTC
Category: Definite Purpose Electric Motors
