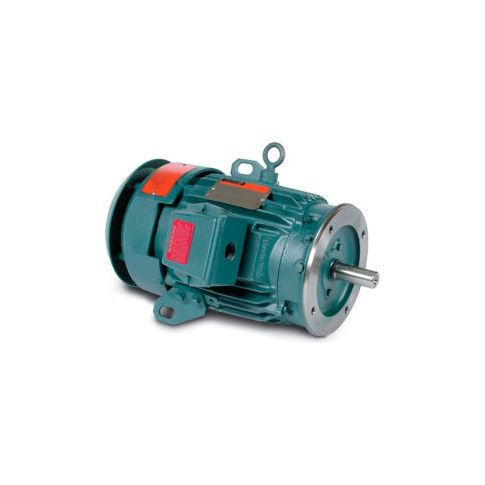

Baldor-Reliance Motor VECP3584T-4 1.5HP 1760RPM 3PH 60HZ 145TC 0530M TEFC VECP3584T-4
Baldor-Reliance Motor, 1.5HP,1760RPM,3PH,60HZ,145TC,0530M,TEFC
Features:
Typical applications include petro-chemical plants, mines, foundries, pulp and paper plants, waste management facilities, chemical plants, tropical climates and other processing industry applications requiring protection against corrosion caused by severe environmental operationg conditions.
Features:
- Super-E premium efficient motor
- 1.15 Service Factor
- Corrosion resistant epoxy finish
- Regreasable ball bearings
- Oversized rotatable cast iron conduit box
- Forsheda® shaft seal
- Moisture resistant copper windings
- Class F insulation
- Stainless steel nameplate and corrosion resistant hardware
- Tropicalized
Typical applications include petro-chemical plants, mines, foundries, pulp and paper plants, waste management facilities, chemical plants, tropical climates and other processing industry applications requiring protection against corrosion caused by severe environmental operationg conditions.
Product Specifications
- HORSEPOWER1 1/2
- ENCLOSURETEFC
- FRAME145TC
- BRANDBaldor-Reliance
- MOUNTINGNo Mounting
- MOTOR RPM 60Hz1760
- RPM1760
- PHASE3
- VOLTAGE460
- HERTZ60
- SERVICE FACTOR1.15
- AMBIENT TEMP C40
- ENCLOSURE TYPETotally Enclosed
- OPPOSITE END BEARING6205
- RPM RANGE1701-1800
- 208V AMPS--
- KVA-CODEL
- is_motorYes
- POWER-FACTOR76
- FL EFFICIENCY88.5
- SERIAL-NUMBER--
- SPEC. NUMBER05E999W812G1
- BEARING-DRIVE-END6205
- DESIGN CODEB
- DOE-CODE--
- FL AMPS2.1
- MANUFACTURER PART #VECP3584T-4
- WEIGHT LBS.68
- DRIVE END FLANGEC-Face
- C-DIMENSION INCHES13.38
- POLES4
- INSULATION CLASSF
Additional Information
- UPC: 781568400791
- UNSPSC: 26101100
- Brand: Baldor Electric Co.
- Package Quantity: 1
- Country of Origin: US
- FOB Origin: AR
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: No
- Package Weight: 68.00
Product info last updated on August 26, 2024 2:21pm UTC
Category: Definite Purpose Electric Motors
