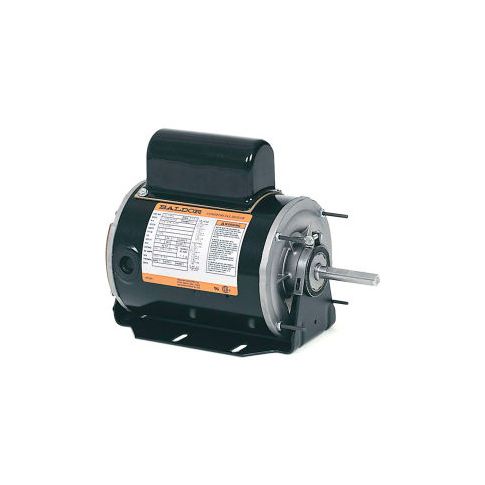

Baldor-Reliance Motor CHC144A .25HP 1725RPM 1PH 60HZ 48Z 1712C TEAO F1 CHC144A
Baldor-Reliance Motor, .25HP,1725RPM,1PH,60HZ,48Z,1712C,TEAO,F1
Features:
Air handling fans, Confinement houses, Exhaust fans, Unit heaters, and other applications having moderate starting loads
Features:
- Automatic thermal overload
- Ball bearings
- Extended thru-bolts
- Resilient cushion rings
- Reversible rotation
- Rugged steel frame
- Suitable for mounting in any position
- Terminal panel with quick connections on single phase
Air handling fans, Confinement houses, Exhaust fans, Unit heaters, and other applications having moderate starting loads
Product Specifications
- HORSEPOWER1/4
- ENCLOSURETEAO
- FRAME48Z
- BRANDBaldor-Reliance
- MOUNTINGResilient Base
- MOTOR RPM 60Hz1725
- RPM1725
- PHASE1
- VOLTAGE115/230
- HERTZ60
- SERVICE FACTOR1
- AMBIENT TEMP C40
- ENCLOSURE TYPETotally Enclosed
- WEIGHT18
- RPM RANGE1701-1800
- SERVICE-FACTOR-AMPS--
- MANUFACTURER PART NUMBERCHC144A
- THERMAL-SELECTN
- 208V AMPS1.6
- KVA-CODEF
- POWER-FACTOR--
- FL EFFICIENCY66
- SERIAL-NUMBER--
- SPEC. NUMBER17K043W029
- DESIGN CODE-
- BALDOR CATALOG NUMBERCHC144A
- FL AMPS3/1.5
- DRIVE END FLANGEStandard
- C-DIMENSION INCHES11.46
- POLES4
- INSULATION CLASSB
Additional Information
- UPC: 781568408858
- UNSPSC: 26101100
- Brand: Baldor Electric Co.
- Package Quantity: 1
- Country of Origin: US
- FOB Origin: AR
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: No
- Package Weight: 18.00
Product info last updated on August 26, 2024 2:21pm UTC
Category: Definite Purpose Electric Motors
