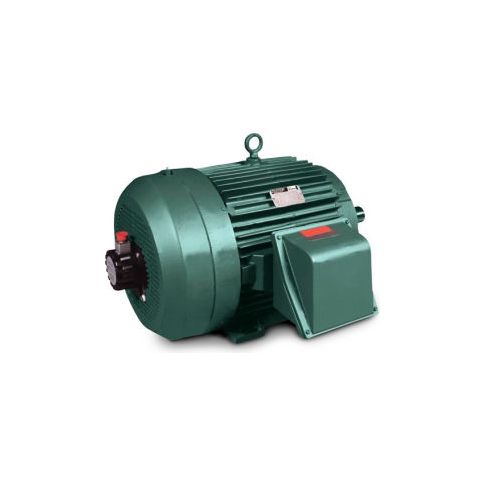

Baldor-Reliance Motor ZDVSNM3581T 1HP 1750RPM 3PH 60HZ 145TC 0528M TENV F1 ZDVSNM3581T
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
281-2035B39
Baldor-Reliance Motor ZDVSNM3581T 1HP 1750RPM 3PH 60HZ 145TC 0528M TENV F1 ZDVSNM3581T
Baldor-Reliance Motor, 1HP,1750RPM,3PH,60HZ,145TC,0528M,TENV,F1
Features:
Conveyors, extruders, printing lines, converting, test stands, anywhere constant torque is required over a wide speed range.
Features:
- Designed specifically for Inverter operation where up to 1000:1 constant torque speed range is required
- Includes provisions for stub shaft for hollow shaft encoder, three thermostats, and all 440T frames include an ODE insulated bearing
- Insulation system exceeds NEMA MG 1-2006, Part 31.4.4.2
- Continuous constant torque to zero speed
Conveyors, extruders, printing lines, converting, test stands, anywhere constant torque is required over a wide speed range.
Product Specifications
- HORSEPOWER1
- ENCLOSURETENV
- FRAME145TC
- BRANDBaldor-Reliance
- MOUNTINGRigid
- MOTOR RPM 60Hz1745
- RPM1745
- PHASE3
- VOLTAGE230/460
- HERTZ60
- SERVICE FACTOR1
- AMBIENT TEMP C40
- ENCLOSURE TYPETotally Enclosed
- OPPOSITE END BEARING6203
- WEIGHT65
- RPM RANGE1701-1800
- ROTOR-INERTIA0.142
- SLIP-HERTZ1.7
- is_motorYes
- FL EFFICIENCY85.5
- SERIAL-NUMBER--
- SPEC. NUMBER05E532X129Z2
- BLOWER-PHASE--
- BLOWER-AMPS--
- BLOWER-HERTZ--
- BEARING-DRIVE-END6205
- DESIGN CODEB
- BALDOR CATALOG NUMBERZDVSNM3581T
- DOE-CODE--
- FL AMPS2.9/1.45
- BLOWER-VOLTS--
- MAGNETIZING-CURRENT1.8/.9
- MAXIMUM-RPM6000
- DRIVE END FLANGEC-Face
- C-DIMENSION INCHES14.65
- POLES4
- INSULATION CLASSH
Additional Information
- UPC: 781568471630
- UNSPSC: 26101106
- Brand: Baldor Electric Co.
- Package Quantity: 1
- Country of Origin: US
- FOB Origin: AR
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: No
- Package Weight: 65.00
Product info last updated on August 26, 2024 2:21pm UTC
Category: Definite Purpose Electric Motors
