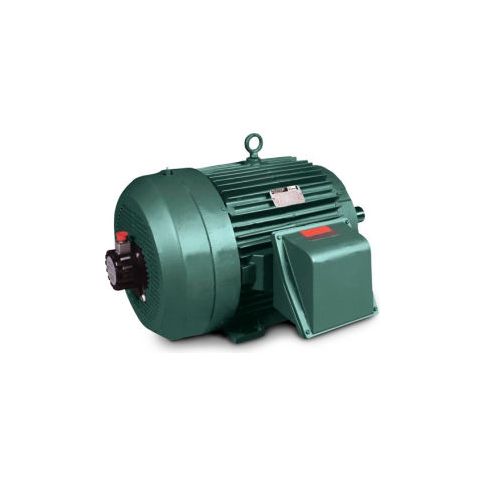

Baldor-Reliance Motor ZDVSNM3587T 2HP 1740RPM 3PH 60HZ 145TC 0535M TENV F1 ZDVSNM3587T
Baldor-Reliance Motor, 2HP,1740RPM,3PH,60HZ,145TC,0535M,TENV,F1
Features:
Conveyors, extruders, printing lines, converting, test stands, anywhere constant torque is required over a wide speed range.
Features:
- Designed specifically for Inverter operation where up to 1000:1 constant torque speed range is required
- Includes provisions for stub shaft for hollow shaft encoder, three thermostats, and all 440T frames include an ODE insulated bearing
- Insulation system exceeds NEMA MG 1-2006, Part 31.4.4.2
- Continuous constant torque to zero speed
Conveyors, extruders, printing lines, converting, test stands, anywhere constant torque is required over a wide speed range.
Product Specifications
- HORSEPOWER2
- ENCLOSURETENV
- FRAME145TC
- BRANDBaldor-Reliance
- MOUNTINGRigid
- MOTOR RPM 60Hz1755
- RPM1755
- PHASE3
- VOLTAGE230/460
- HERTZ60
- SERVICE FACTOR1
- AMBIENT TEMP C40
- ENCLOSURE TYPETotally Enclosed
- OPPOSITE END BEARING6203
- WEIGHT69
- RPM RANGE1701-1800
- ROTOR-INERTIA0.207
- SLIP-HERTZ1.5
- is_motorYes
- FL EFFICIENCY86.5
- SERIAL-NUMBER--
- SPEC. NUMBER05E532X131Z1
- BLOWER-PHASE--
- BLOWER-AMPS--
- BLOWER-HERTZ--
- BEARING-DRIVE-END6205
- DESIGN CODEB
- BALDOR CATALOG NUMBERZDVSNM3587T
- DOE-CODE--
- FL AMPS5.6/2.8
- BLOWER-VOLTS--
- MAGNETIZING-CURRENT3.2/1.6
- MAXIMUM-RPM5500
- DRIVE END FLANGEC-Face
- C-DIMENSION INCHES14.65
- POLES4
- INSULATION CLASSH
Additional Information
- UPC: 781568471654
- UNSPSC: 26101106
- Brand: Baldor Electric Co.
- Package Quantity: 1
- Country of Origin: US
- FOB Origin: AR
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: No
- Package Weight: 69.00
Product info last updated on August 26, 2024 2:21pm UTC
Category: Definite Purpose Electric Motors
