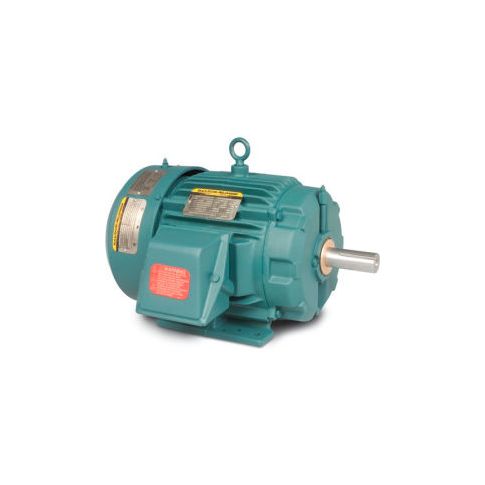

Baldor-Reliance Motor CENCP83580T-4 1HP 3450RPM 3PH 60HZ 143TC 0520M TENV F1 CENCP83580T-4
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
281-8725B38
Baldor-Reliance Motor CENCP83580T-4 1HP 3450RPM 3PH 60HZ 143TC 0520M TENV F1 CENCP83580T-4
Baldor-Reliance Motor, 1HP,3450RPM,3PH,60HZ,143TC,0520M,TENV,F1
Features:
Petro-chemical, pulp and paper, cement, aggregate mining and other process industries requiring premium efficient motors designed, manufactured and tested to exceed IEEE 841-2001 TEFC motor standards for extreme severe duty service.
Features:
- Built to 841XL design
- Upgraded electrical and mechanical design with NEMA Premium® efficient winding
- Inpro/Seal® VBX (thru 210 frame)
- VBXX bearing isolators on fan and drive end shaft extensions
- Epoxy paint provides IP56 enclosure
- Stainless breather drains
- 5-year warranty
Petro-chemical, pulp and paper, cement, aggregate mining and other process industries requiring premium efficient motors designed, manufactured and tested to exceed IEEE 841-2001 TEFC motor standards for extreme severe duty service.
Product Specifications
- HORSEPOWER1
- ENCLOSURETENV
- FRAME143TC
- BRANDBaldor-Reliance
- MOUNTINGRigid
- MOTOR RPM 60Hz3450
- RPM3450
- PHASE3
- VOLTAGE460
- HERTZ60
- SERVICE FACTOR1.15
- AMBIENT TEMP C40
- ENCLOSURE TYPETotally Enclosed
- OPPOSITE END BEARING6205
- RPM RANGE3001-3600
- # OF ROTOR BARS36
- KVA-CODEL
- is_motorYes
- POWER-FACTOR88
- FL EFFICIENCY84
- TEMP. CODET3
- MAX. KVAR0.05
- SERIAL-NUMBER--
- GREASEPOLYREX EM
- SPEC. NUMBER05F127W634G2
- # OF STATOR SLOTS20
- BEARING-DRIVE-END6205
- DESIGN CODEB
- DOE-CODE--
- FL AMPS1.3
- MAX. SPACE HEATER TEMP.N/A
- MANUFACTURER PART #CENCP83580T-4
- SPACE-HEATER-AMPSN/A
- WEIGHT LBS.56
- SPACE-HEATER-VOLTSN/A
- DRIVE END FLANGEC-Face
- C-DIMENSION INCHES12
- POLES2
- INSULATION CLASSF
Additional Information
- UPC: 781568501795
- UNSPSC: 26101100
- Brand: Baldor Electric Co.
- Package Quantity: 1
- Country of Origin: US
- FOB Origin: AR
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: No
- Package Weight: 56.00
Product info last updated on August 26, 2024 2:21pm UTC
Category: Definite Purpose Electric Motors
