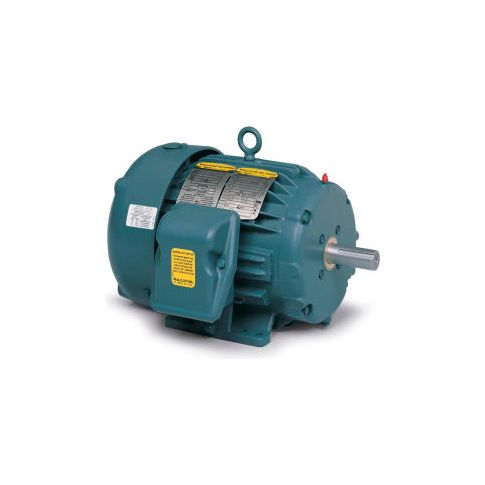

Baldor-Reliance Severe Duty Motor ECP83586T-5 3 PH 2 HP 575 V 3450 RPM TEFC 145T Frame ECP83586T-5
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
281-9887B90
Baldor-Reliance Severe Duty Motor ECP83586T-5 3 PH 2 HP 575 V 3450 RPM TEFC 145T Frame ECP83586T-5
Baldor-Reliance Severe Duty Motor, ECP83586T-5, 3 PH, 2 HP, 575 V, 3450 RPM, TEFC, 145T Frame
Severe Duty motors are available from 1 HP to 700 HP. These products are especially designed for those applications requiring protection of the motors from severe environmental operating conditions. A few typical applications which might require these types of motors include petro-chemical plants, mines, foundries, pulp and paper plants, waste management facilities, rock crushers, and chemical plants.
Features
Severe Duty motors are available from 1 HP to 700 HP. These products are especially designed for those applications requiring protection of the motors from severe environmental operating conditions. A few typical applications which might require these types of motors include petro-chemical plants, mines, foundries, pulp and paper plants, waste management facilities, rock crushers, and chemical plants.
Features
- Built to 841XL design
- Upgraded electrical and mechanical design with NEMA Premium® efficient winding
- Inpro/Seal® VBX (thru 210 frame)
- VBXX bearing isolators on fan and drive end shaft extensions
- Epoxy paint provides IP56 enclosure
- Stainless breather drains
- Proprietary cast iron frames for reduced vibration and noise
- Terminal lugs on motor leads
- 5-year warranty
- Petro-chemical, pulp and paper, cement, aggregate mining and other process industries requiring premium efficient motors designed, manufactured and tested to exceed IEEE 841-2001 TEFC motor standards for extreme severe duty service.
Product Specifications
- HORSEPOWER2
- ENCLOSURETEFC
- FRAME145T
- BRANDBaldor-Reliance
- MOTOR RPM 60Hz3450
- RPM3450
- PHASE3
- VOLTAGE575
- HERTZ60
- SERVICE FACTOR1.15
- AMBIENT TEMP C40
- ENCLOSURE TYPETotally Enclosed
- OPPOSITE END BEARING6205
- DUTYContinuous
- RPM RANGE3001-3600
- is_motorYes
- KVA-CODEL
- EFFICIENCY-286.5
- POWER-FACTOR91
- FL EFFICIENCY84
- GREASEPOLYREX EM
- SPEC. NUMBER05E811W784
- BEARING-DRIVE-END6205
- DESIGN CODEB
- BALDOR CATALOG NUMBERECP83586T-5
- DOE-CODE010A
- FL AMPS1.9
- MANUFACTURER PART #ECP83586T-5
- TYPESevere Duty Motor
- C-DIMENSION INCHES12.88
- INSULATION CLASSF
Additional Information
- UPC: 781568501863
- UNSPSC: 26101100
- Brand: Baldor Electric Co.
- Package Quantity: 1
- Country of Origin: US
- FOB Origin: AR
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: No
- Package Length: 17.00
- Package Width: 15.00
- Package Height: 14.00
- Package Weight: 66.00
Product info last updated on August 26, 2024 2:21pm UTC
Category: Definite Purpose Electric Motors
