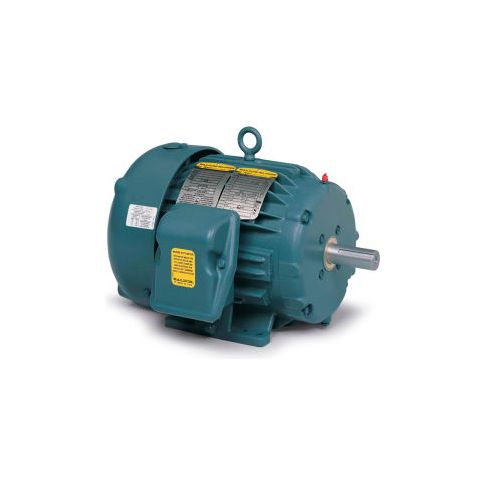

Baldor-Reliance Severe Duty Motor ECP83584T-5 3 PH 1.5 HP 575 V 1760 RPM TEFC 145T Frame ECP83584T-5
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
281-0076B91
Baldor-Reliance Severe Duty Motor ECP83584T-5 3 PH 1.5 HP 575 V 1760 RPM TEFC 145T Frame ECP83584T-5
Baldor-Reliance Severe Duty Motor, ECP83584T-5, 3 PH, 1.5 HP, 575 V, 1760 RPM, TEFC, 145T Frame
Severe Duty motors are available from 1 HP to 700 HP. These products are especially designed for those applications requiring protection of the motors from severe environmental operating conditions. A few typical applications which might require these types of motors include petro-chemical plants, mines, foundries, pulp and paper plants, waste management facilities, rock crushers, and chemical plants.
Features
Severe Duty motors are available from 1 HP to 700 HP. These products are especially designed for those applications requiring protection of the motors from severe environmental operating conditions. A few typical applications which might require these types of motors include petro-chemical plants, mines, foundries, pulp and paper plants, waste management facilities, rock crushers, and chemical plants.
Features
- 1.15 Service Factor
- Corrosion resistant epoxy finish
- Regreasable ball bearings
- Oversized rotatable cast iron conduit box
- Forsheda® shaft seal
- Moisture resistant copper windings
- Class F insulation
- Stainless steel nameplate and corrosion resistant hardware
- Tropicalized
- Typical applications include petro-chemical plants, mines, foundries, pulp and paper plants, waste management facilities, chemical plants, tropical climates and other processing industry applications requiring protection against corrosion caused by severe environmental operationg conditions.
Product Specifications
- HORSEPOWER1 1/2
- ENCLOSURETEFC
- FRAME145T
- BRANDBaldor-Reliance
- MOTOR RPM 60Hz1760
- RPM1760
- PHASE3
- VOLTAGE575
- HERTZ60
- SERVICE FACTOR1.15
- AMBIENT TEMP C40
- ENCLOSURE TYPETotally Enclosed
- OPPOSITE END BEARING6205
- DUTYContinuous
- RPM RANGE1701-1800
- is_motorYes
- KVA-CODEL
- EFFICIENCY-288.5
- POWER-FACTOR76
- FL EFFICIENCY86.5
- GREASEPOLYREX EM
- SPEC. NUMBER05E811W830G1
- BEARING-DRIVE-END6205
- DESIGN CODEB
- BALDOR CATALOG NUMBERECP83584T-5
- DOE-CODE010A
- FL AMPS1.7
- MANUFACTURER PART #ECP83584T-5
- TYPESevere Duty Motor
- C-DIMENSION INCHES12.87
- INSULATION CLASSF
Additional Information
- UPC: 781568621189
- UNSPSC: 26101100
- Brand: Baldor Electric Co.
- Package Quantity: 1
- Country of Origin: US
- FOB Origin: AR
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: No
- Package Length: 17.00
- Package Width: 15.00
- Package Height: 14.00
- Package Weight: 63.00
Product info last updated on August 26, 2024 2:21pm UTC
Category: Definite Purpose Electric Motors
