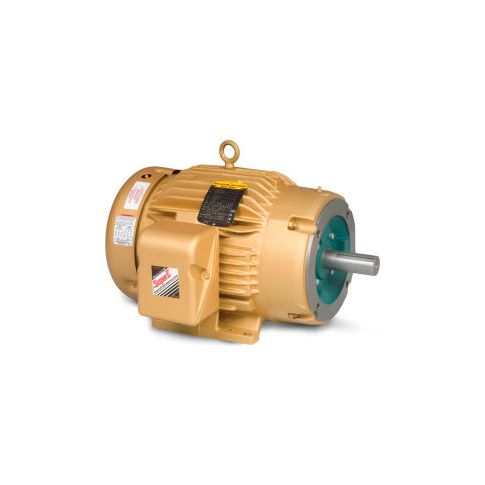

Baldor-Reliance Motor CEM3586T 2HP 3450RPM 3PH 60HZ 145TC 0532M TEFC F1 CEM3586T
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
281-8914B38
Baldor-Reliance Motor CEM3586T 2HP 3450RPM 3PH 60HZ 145TC 0532M TEFC F1 CEM3586T
Baldor-Reliance Motor, 2HP,3450RPM,3PH,60HZ,145TC,0532M,TEFC,F1
Features:
Typical applications include operations where continuous or frequent duty is required. Super-E Motors are designed to conserve energy over extended time periods. Class F insulated, 1.15 service factor. Inverter rated per NEMA MG1 Part 31.4.4.2. Suitable for variable torque applications and constant torque speed range with properly sized and adjusted variable frequency drives.
Features:
- Heavy gauge steel and cast iron frames
- Ball bearings
- ISR® (Inverter Spike Resistant®) copper windings
- Low-loss electrical grade lamination steel
- Three year warranty
Typical applications include operations where continuous or frequent duty is required. Super-E Motors are designed to conserve energy over extended time periods. Class F insulated, 1.15 service factor. Inverter rated per NEMA MG1 Part 31.4.4.2. Suitable for variable torque applications and constant torque speed range with properly sized and adjusted variable frequency drives.
Product Specifications
- HORSEPOWER2
- ENCLOSURETEFC
- FRAME145TC
- MOUNTINGRigid
- NAMEPLATE RPM3490
- PHASE3
- MOTOR RPM 60Hz3490
- VOLTAGE208-230/460
- HERTZ60
- SERVICE FACTOR1.15
- AMBIENT TEMP C40
- WEIGHT64
- RPM RANGE3001-3600
- DESIGN CODEB
- BEARING-DRIVE-END6205
- BEARING-OPP-DRIVE-END6203
- FL EFFICIENCY85.5
- INSULATION CLASSF
- FL AMPS5.3-5/2.5
- KVA-CODEM
- 208V AMPS--
- BRANDBaldor-Reliance
- MANUFACTURER PART #CEM3586T
- DOE-CODE010A
- is_motorYes
- ENCLOSURE TYPETotally Enclosed
- POWER-FACTOR88
- DRIVE END FLANGEC-Face
- SERIAL-NUMBER--
- C-DIMENSION INCHES13.05
- POLES2
- SPEC. NUMBER05C052X117E7
Additional Information
- UPC: 781568134221
- UNSPSC: 26101112
- Brand: Baldor Electric Co.
- Package Quantity: 1
- Country of Origin: US
- FOB Origin: AR
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: No
- Package Weight: 64.00
Product info last updated on August 26, 2024 2:21pm UTC
Category: General Purpose Electric Motors
