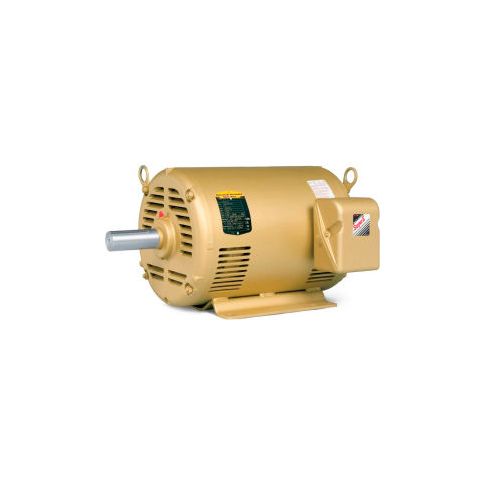

Baldor-Reliance Motor EFM3157T 2HP 1725RPM 3PH 60HZ 145T 3532M OPSB F2 EFM3157T
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
281-0383B39
Baldor-Reliance Motor EFM3157T 2HP 1725RPM 3PH 60HZ 145T 3532M OPSB F2 EFM3157T
Baldor-Reliance Motor, 2HP,1725RPM,3PH,60HZ,145T,3532M,OPSB,F2
Features:
Typical applications include operations where continuous or frequent duty is required. Super-E Motors are designed to conserve energy over extended time periods. Inverter rated per NEMA MG1 Part 31.4.4.2. Suitable for variable torque applications and 20:1 constant torque speed range with properly sized and adjusted variable frequency drives.
Features:
- Heavy duty frames
- Ball bearings
- Moisture resistant ISR® (Inverter Spike Resistant) copper windings
- Low-loss electrical lamination grade steel
- Three year warranty.
Typical applications include operations where continuous or frequent duty is required. Super-E Motors are designed to conserve energy over extended time periods. Inverter rated per NEMA MG1 Part 31.4.4.2. Suitable for variable torque applications and 20:1 constant torque speed range with properly sized and adjusted variable frequency drives.
Product Specifications
- HORSEPOWER2
- ENCLOSUREOPSB
- FRAME145T
- MOUNTINGRigid
- NAMEPLATE RPM1750
- PHASE3
- MOTOR RPM 60Hz1750
- VOLTAGE230/460
- HERTZ60
- SERVICE FACTOR1.15
- AMBIENT TEMP C40
- WEIGHT48
- RPM RANGE1701-1800
- DESIGN CODEB
- BEARING-DRIVE-END6205
- BEARING-OPP-DRIVE-END6203
- FL EFFICIENCY86.5
- INSULATION CLASSF
- FL AMPS5.8/2.9
- KVA-CODEK
- 208V AMPS5.8
- BRANDBaldor-Reliance
- DOE-CODE010A
- MANUFACTURER PART #EFM3157T
- is_motorYes
- ENCLOSURE TYPEOpen/Drip Proof
- POWER-FACTOR76
- DRIVE END FLANGEStandard
- SERIAL-NUMBER--
- C-DIMENSION INCHES13
- POLES4
- SPEC. NUMBER35L654M496G1
Additional Information
- UPC: 781568173343
- UNSPSC: 26101112
- Brand: Baldor Electric Co.
- Package Quantity: 1
- Country of Origin: US
- FOB Origin: AR
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: No
- Package Weight: 48.00
