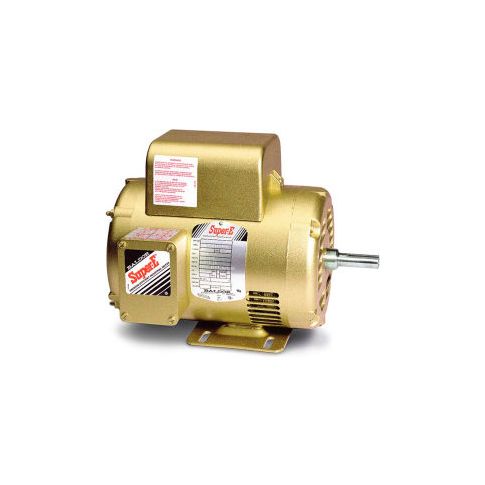

Baldor-Reliance Motor EL1319T 1.5HP 1755RPM 1PH 60HZ 143T 3535LC OPEN EL1319T
Baldor-Reliance Motor, 1.5HP,1755RPM,1PH,60HZ,143T,3535LC,OPEN
Features:
General purpose including compressors, pumps, conveyors, fans, machine tools and air conditioning units, etc.
Features:
- Copper windings
- Rotors dynamically balanced
- Ball bearings
- Heavy guage steel frame construction
General purpose including compressors, pumps, conveyors, fans, machine tools and air conditioning units, etc.
Product Specifications
- HORSEPOWER1 1/2
- ENCLOSUREOPEN
- FRAME143T
- MOUNTINGRigid
- NAMEPLATE RPM1755
- PHASE1
- MOTOR RPM 60Hz1755
- VOLTAGE115/208-230
- HERTZ60
- SERVICE FACTOR1.15
- AMBIENT TEMP C40
- WEIGHT49
- DESIGN CODEL
- BEARING-DRIVE-END6205
- BEARING-OPP-DRIVE-END6203
- FL EFFICIENCY85.5
- INSULATION CLASSF
- FL AMPS12.5/6.7-6.25
- KVA-CODEK
- 208V AMPS--
- BRANDBaldor-Reliance
- DOE-CODE--
- MANUFACTURER PART #EL1319T
- is_motorYes
- ENCLOSURE TYPEOpen/Drip Proof
- POWER-FACTOR94
- DRIVE END FLANGEStandard
- SERIAL-NUMBER--
- C-DIMENSION INCHES13
- POLES4
- SPEC. NUMBER35EE002S681G1
