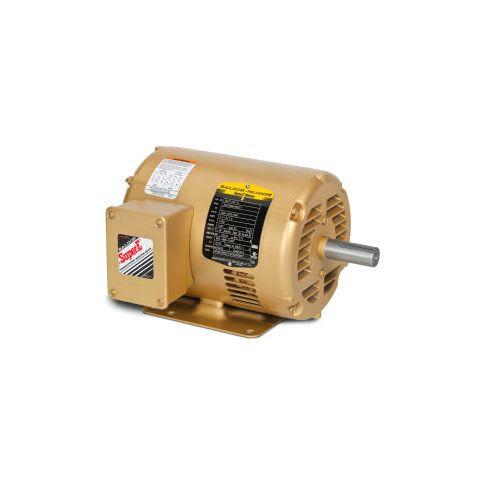

Baldor-Reliance EM31107 .5HP 3600RPM 56 Frame 3PH 230/460V ODP Rigid Premium Efficiency EM31107
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
281-78951B20
Baldor-Reliance EM31107 .5HP 3600RPM 56 Frame 3PH 230/460V ODP Rigid Premium Efficiency EM31107
This item is NOT returnable.
Baldor-Reliance EM31107 .5HP 3600RPM 56 Frame 3PH 230/460V, ODP, Rigid, Premium Efficiency
Baldor-Reliance 3-Phase ODP motors are in accordance with the Small Motor Rule implemented by the Department of Energy. These motors feature copper windings, ball bearings, heavy duty steel and cast iron frames. Super-E® motors have NEMA Premium® Efficiency and a 3 year warranty.
Features:
Baldor-Reliance 3-Phase ODP motors are in accordance with the Small Motor Rule implemented by the Department of Energy. These motors feature copper windings, ball bearings, heavy duty steel and cast iron frames. Super-E® motors have NEMA Premium® Efficiency and a 3 year warranty.
Features:
- Compressors
- Pumps
- Conveyors
- Machine Tools
- And other General Purpose 3-Phase applications
Product Specifications
- HORSEPOWER1/2
- ENCLOSUREODP
- FRAME56
- MOUNTINGRigid
- NAMEPLATE RPM3450
- PHASE3
- MOTOR RPM 60Hz3600
- VOLTAGE230/460
- HERTZ60
- DUTYContinuous
- SERVICE FACTOR1.25
- EFFICIENCY TYPEPremium
- AMBIENT TEMP C40
- WEIGHT24
- RPM RANGE3001-3600
- WARRANTY3 years
- FL EFFICIENCY73.4
- DEGREE OF PROTECTIONIP22
- INSULATION CLASSF
- FL AMPS1.6/.8
- DRIVE END BEARING SIZE6203
- OPPOSITE END BEARING SIZE6203
- BRANDBaldor-Reliance
- MANUFACTURER PART #EM31107
- is_motorYes
- ENCLOSURE TYPEOpen/Drip Proof
- POWER FACTOR AT FULL LOAD 78
- POLES2
Additional Information
- UPC: 781568732656
- UNSPSC: 26101112
- Brand: Baldor Electric Co.
- Package Quantity: 1
- Country of Origin: US
- FOB Origin: AR
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: No
- Package Length: 13.50
- Package Width: 10.60
- Package Height: 9.00
- Package Weight: 29.00
Product info last updated on August 26, 2024 2:21pm UTC
Category: General Purpose Electric Motors
