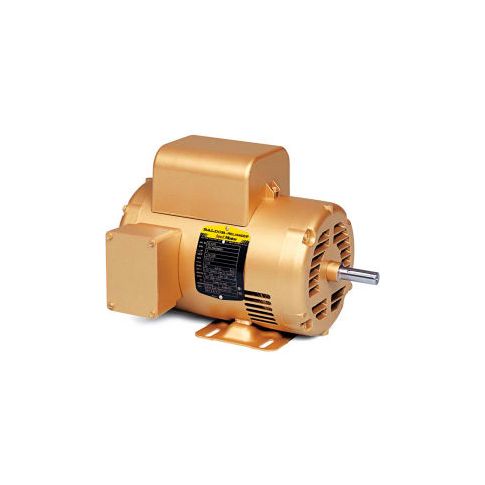

Baldor-Reliance EL11208 .5HP 48 Frame 3600RPM 115/230V ODP Rigid Premium Efficiency EL11208
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
281-79028B20
Baldor-Reliance EL11208 .5HP 48 Frame 3600RPM 115/230V ODP Rigid Premium Efficiency EL11208
Baldor-Reliance EL11208 .5HP 48 Frame 3600RPM 115/230V ODP, Rigid, Premium Efficiency
Baldor-Reliance Single Phase ODP motors are in accordance with the Small Motor Rule implemented by the Department of Energy. These motors feature copper windings, dynamically balanced rotors, ball bearings, heavy-gauge steel frames, and other industrial quality features.
Features:
Baldor-Reliance Single Phase ODP motors are in accordance with the Small Motor Rule implemented by the Department of Energy. These motors feature copper windings, dynamically balanced rotors, ball bearings, heavy-gauge steel frames, and other industrial quality features.
Features:
- Compressors
- Pumps
- Conveyors
- Machine Tools
- Air Handling
- And many more
Product Specifications
- HORSEPOWER1/2
- ENCLOSUREODP
- FRAME48
- MOUNTINGRigid
- NAMEPLATE RPM3450
- PHASE1
- MOTOR RPM 60Hz3600
- VOLTAGE115/230
- HERTZ60
- DUTYContinuous
- SERVICE FACTOR1.25
- EFFICIENCY TYPEPremium
- AMBIENT TEMP C40
- WEIGHT24
- RPM RANGE3001-3600
- WARRANTY3 Years
- FL EFFICIENCY72.4
- DEGREE OF PROTECTIONIP22
- INSULATION CLASSF
- FL AMPS4.9/2.5
- DRIVE END BEARING SIZE6203
- OPPOSITE END BEARING SIZE6203
- BRANDBaldor-Reliance
- MANUFACTURER PART #EL11208
- is_motorYes
- ENCLOSURE TYPEOpen/Drip Proof
- POWER FACTOR AT FULL LOAD 91
- POLES2
Additional Information
- UPC: 781568733608
- UNSPSC: 26101116
- Brand: Baldor Electric Co.
- Package Quantity: 1
- Country of Origin: US
- FOB Origin: AR
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: No
- Package Length: 16.00
- Package Width: 12.00
- Package Height: 12.00
- Package Weight: 29.00
Product info last updated on July 17, 2024 1:47pm UTC
Category: General Purpose Electric Motors
