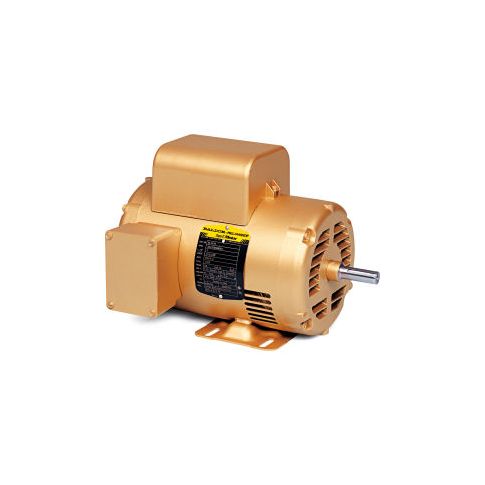

Baldor-Reliance CEL11310 1HP 56C Frame 1800RPM 115/230V ODP C-Face Rigid Premium Efficiency CEL11310
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
281-79004B20
Baldor-Reliance CEL11310 1HP 56C Frame 1800RPM 115/230V ODP C-Face Rigid Premium Efficiency CEL11310
Baldor-Reliance CEL11310 1HP 56C Frame 1800RPM 115/230V ODP, C-Face Rigid, Premium Efficiency
Baldor-Reliance Single Phase ODP motors are in accordance with the Small Motor Rule implemented by the Department of Energy. These motors feature copper windings, dynamically balanced rotors, ball bearings, heavy-gauge steel frames, and other industrial quality features.
Features:
Baldor-Reliance Single Phase ODP motors are in accordance with the Small Motor Rule implemented by the Department of Energy. These motors feature copper windings, dynamically balanced rotors, ball bearings, heavy-gauge steel frames, and other industrial quality features.
Features:
- Compressors
- Pumps
- Conveyors
- Machine Tools
- Air Handling
- And many more
Product Specifications
- HORSEPOWER1
- ENCLOSUREODP
- FRAME56C
- MOUNTINGC-Face Rigid
- NAMEPLATE RPM1725
- PHASE1
- MOTOR RPM 60Hz1800
- VOLTAGE115/230
- HERTZ60
- DUTYContinuous
- SERVICE FACTOR1.15
- EFFICIENCY TYPEPremium
- AMBIENT TEMP C40
- WEIGHT44
- RPM RANGE1701-1800
- WARRANTY3 Years
- FL EFFICIENCY82.6
- DEGREE OF PROTECTIONIP22
- INSULATION CLASSB
- FL AMPS8.4/4.2
- DRIVE END BEARING SIZE6205
- OPPOSITE END BEARING SIZE6203
- BRANDBaldor-Reliance
- MANUFACTURER PART #CEL11310
- is_motorYes
- ENCLOSURE TYPEOpen/Drip Proof
- POWER FACTOR AT FULL LOAD 93
- POLES4
Additional Information
- UPC: 781568763698
- UNSPSC: 26101116
- Brand: Baldor Electric Co.
- Package Quantity: 1
- Country of Origin: US
- FOB Origin: AR
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: No
- Package Length: 16.00
- Package Width: 12.00
- Package Height: 12.00
- Package Weight: 49.00
Product info last updated on August 26, 2024 2:21pm UTC
Category: General Purpose Electric Motors
